Paint Remover Shot Blater in Steel Plate Pretreatment
Quantité : 100 Prix : 20 000,00 €

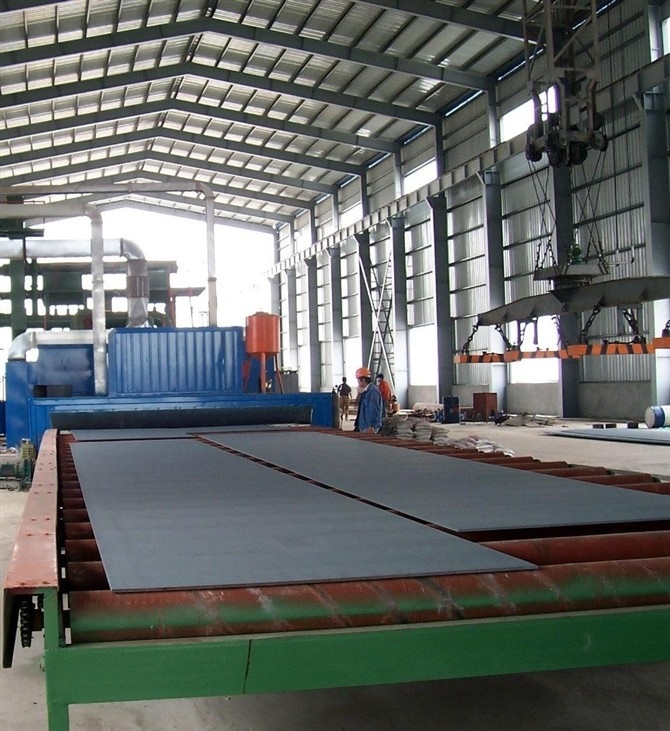

Paint remover shot blater in steel plate pretreatment
Q69 series steel plate shot blasting clean machine is mainly composed of such stage as preheating,shot blast cleaning,painting and stove,ect. It is suitable for the surface derusting&painting craft for steel plates and sections in such industries as shipmaking, automobile making,locomtive vehicle,bridge and machinery .
Paint remover shot blater in steel plate pretreatment Technical parameters
|
Type |
Q698 |
Q6912 |
Q6915 |
|
Effective cleaning width(mm) |
800 |
1200 |
1500 |
|
Dimension of intel opening(mm) |
800*1600 |
1200*400 |
1500*400 |
|
Length of cleaning piece(mm) |
1200-12000 |
1200-6000 |
1200-12000 |
|
Roller speed(stepless speed regulation)(m/min) |
0.5-4 |
0.5-4 |
0.5-5 |
|
Thickness of cleaning steel plate(mm) |
3-60 |
3-60 |
1.5-60 |
|
Specification of the threated sectional bars |
Φ16-28 |
1≤20#<≤16#</td> |
1≤20#<≤16#</td> |
|
Abrasive flow rate(kg/min) |
8*120 |
4*250 |
4*250 |
|
Abrasive initial filling(kg) |
4000 |
4000 |
4000 |
|
Adjusting height of rolling brush(scraping plate)(mm) |
4000 |
200 |
350 |
|
Ventilation capacity(m³/h) |
22000 |
17560 |
19000 |
|
Outline dimensions(mm) |
25017*4500*9015 |
12180*4250*7095 |
15200*5370*6797 |
|
Pit depty(mm) |
1937 |
1616 |
2257 |
|
Total power(excluding dedusting)(kw) |
90 |
78.3 |
113.5 |
|
Gross weight of machine(t) |
20 |
20.4 |
33 |
|
Type |
Q6920 |
Q6925 |
Q6930 |
Q6940 |
|
Effective cleaning width(mm) |
2000 |
2500 |
3000 |
4000 |
|
Dimension of intel opening(mm) |
2000*400 |
2500*800 |
3000*800 |
4000*400 |
|
Length of cleaning piece(mm) |
1200-12000 |
3000-12000 |
2400-12000 |
4500-18000 |
|
Roller speed(stepless speed regulation)(m/min) |
0.5-4 |
0.5-4.5 |
0.5-4 |
2-8 |
|
Thickness of cleaning steel plate(mm) |
3-60 |
3-60 |
3-110 |
4.5-100 |
|
Specification of the threated sectional bars |
1≤20#<≤16#</td> |
60*8-300*1000 |
60*8-300*1000 |
60*8-300*1000 |
|
Abrasive flow rate(kg/min) |
6*250 |
6*250 |
6*360 |
8*360 |
|
Abrasive initial filling(kg) |
4500 |
4500 |
8000 |
11000 |
|
Adjusting height of rolling brush(scraping plate)(mm) |
450 |
600 |
850 |
900 |
|
Ventilation capacity(m³/h) |
19550 |
22758 |
28050 |
38000 |
|
Outline dimensions(mm) |
30650*6850*9095 |
31200*8070*7500 |
44042*6385*7758 |
45000*7830*11117 |
|
Pit depty(mm) |
2800 |
2353 |
2800 |
4317 |
|
Total power (excluding dedusting)(kw) |
156.6 |
224.55 |
204.8 |
293.6 |
|
Gross weight of machine(t) |
41 |
53.2 |
71.8 |
75 |
Paint remover shot blater in steel plate pretreatment Servies
1.Reply your inquiry in 24 working hours.steel plate shot blasting machine
2.Experienced staffs answer all your questions in fluent English.steel plate shot blasting machine
3.Customized design is available. UEM&UBM are welcomed.steel plate shot blasting machine
4.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.steel plate shot blasting machine
5.Special discount and protection of sales are provided to our distributor.steel plate shot blasting machine
6.Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 11 years, competitive with good quantity.steel plate shot blasting machine
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges are usually paid by your side, the charges will be rebounded when we have formal order.steel plate shot blasting machine
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.steel plate shot blasting machine
Personne à contacter : Diana Cui, 86 532 83979122
Bonne affaire : acheter au vendeur
Nous vous invitons à lire nos conditions générales d'utilisations. Vous pouvez aussi vous rendre sur nos FAQ et consulter notre page d'informations sur les risques liés à la contrefaçon.
|
Cette page concerne les importateurs et exportateurs de Paint Remover Shot Blater in Steel Plate Pretreatment Rechercher dans la catégorie : Biens d'équipement Rechercher dans la catégorie : plate, paint, pretreatment, blater, remover, steel, shot |
