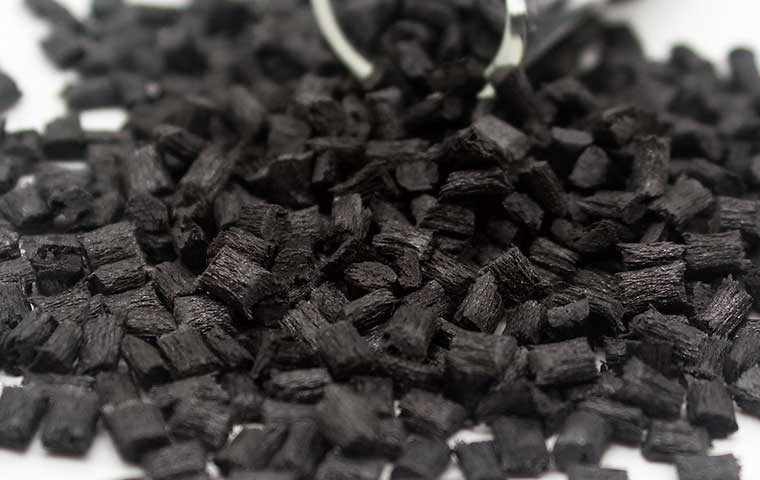

PA66 GF35 (A2000G, A2011G, A2111G) for Engineering Plastics
PA66 is nylon 66, namely pa66_gf35 is glass fiber. Generally expressed as PA66 GF35, that is, 35% glass fiber is added to nylon 66.
Typical Application of PA 66 GF 35 (A2000G)
It is applied to lamp holder cover and cooling fan, gears and various electronic connectors, wear-resistant parts of elevators, and internal and external structural parts around the engine such as cooling fan.
Processing Detail of PA6 6GF35 (A2000G)
Other Details of PA 6.6 GF 35 (A2000G)
|
Physical Property |
|
|
Ash |
(35.0% 1 ISO3451/1) |
|
Conditioned |
600°C*2h |
|
Density |
(1407Kg/m3 1 ISO1183) |
|
Conditioned |
23°C |
|
Shrinkage Parallel Flow |
(0.2-0.4 % 1 ISO294-4) |
|
Shrinkage Vertical Flow |
(0.5-0.8% I ISO294-4) |
|
Mechanical Properties |
|
|
Tensile strength (105.0MPa 1 ISO527) Conditioned |
5mm/ min |
|
Tensile Strain at Break (2.6% I ISO527) Conditioned |
5mm/ min |
|
Notched Impact Strength (10.0 KJ/m2 I ISO179) Conditioned |
1.0J |
|
Flexural Strength (177MPa 1ISO178) Conditioned |
2mm/min |
|
Flexural Modulus (5050 MPa I ISO178) Conditioned |
2mm/min |
|
Thermal Property |
|
|
Melting Point |
(260°C I ISO11357) |
|
Hot Deformation Temperature |
(255*C I ISO75) |
|
Conditioned |
1.8MPa |
|
Flammability Class |
(HB 1UL94) |
|
Conditioned |
mm |
|
Injection Molding Conditions |
|
|
Drying Temperature |
130°C |
|
Drying Time |
3h |
|
Cylinder Temperature |
280-300°C |
|
Nozzle Temperature |
280-300*C |
|
Tooling Temperature |
80-100*C |
* Molding conditions are just for reference, please make an adjustment based on the actual situation!
As a reliable plastics engineering company, we will do our best to meet all the needs of customers.
Want To Buy High-quality PA material as Engineering Plastic Masterbatch? Come to Anmei, a professional engineering plastic/masterbatch company!
