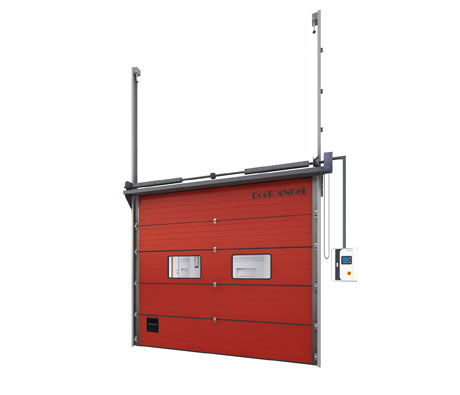

Overhead Sectional Door
Sectional doors open vertically, creating free space in front of and behind the door. The door sections are stored flat underneath the ceiling, vertically above the opening or along the roof. Industrial sectional door is a type of industrial door being widely applied to many factories and large buildings. industrial sectional overhead door could be also used as garage sectional door. There are also commercial sectional overhead doors and residential sectional garage door.
Specifications Of Overhead Sectional Door
|
Product Information |
|
|
Model: |
Overhead Sectional Door |
|
Door Panel |
Galvanized Steel Plate |
|
Door Filler |
Polyurethane foaming |
|
Guide Rail |
Galvanized Steel,Noise Level <= 60db</span> |
|
Door Panel Thickness |
40mm-80mm(optional) |
|
Operation Temperature |
From -40Degrees to 50 Degrees |
|
Drive Voltage |
220V 50HZ |
|
Components |
Motor, airbag, spring brake device, cable break device, pulleys, control box, brackets |
|
Technical Data: |
|
|
Climbing Mode |
Standard Lifing, High Lifting, Vertical Lifing |
|
Door Configuration: |
With Clear window or small sectional door or without window/door |
|
Door Panel Size |
Max 12000MM |
|
Opening Size |
Max 8000MM |
|
Heat Transfer |
K=0.4-0.5W/㎡K |
|
Opening Speed: |
about 130mm/S |
|
Operation Counts |
Max 100times /24 hours |
|
Balance System |
External torsion spring balance system, the working life of the torsion spring reaches 400000-800000s working cycle |
|
Opening Type: |
Button,rope control,remote control,Geomagnetic Control,Photocell Control, Radar Control |
|
Package: Caron, Wooden Box |
|
|
MOQ and Lead Time: 1set,3days |
|
Features Of Overhead Sectional Door
Efficient thermal insulation
Wind-proof, low noise
Anti-theft
Multiple opening methods: Manual, motor-driven, remote, sensors.
Dongguan Xinyi Door Co., Ltd. is a professional door manufacturing companies, we provide cheap sectional garage doors, colour steel sectional garage door, sectional garage door insulation, sectional panel lift garage door, side sectional garage door, Corridor Door, Clean Room Door, industrial style doors, industrial doors for sale and etc. Want to know about industrial roller shutter doors prices? Please contact us.
