Outdoor Rental LED Display(640x640mm)
Pixel Pitch: 6.67mm,8mm,10mm
Suitable：outdoor rental
Application：events,shows,exhibitions,etc

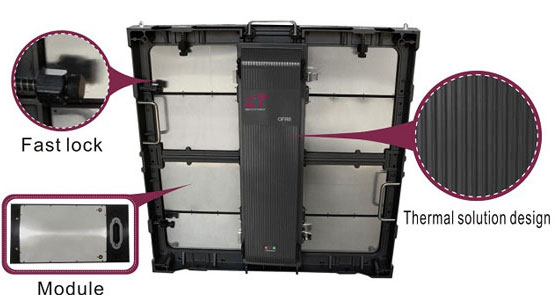

Cabinet: Die-casting Aluminum
- No fan design with good noise-free effect
- Super slim and light weight as well as to transport, store, easy to carry and assemble
- Higher precision and seamless connection
- Fast&seamless assembly without tools
- For an extra wide viewing angle and a matte surface, for exceptional picture quality in all circumstances
- High brighness, high waterproof level, IP65 front/IP65 rear
- Cabinet is made of die-casting aluminum material, greaceful and concise appearance
| Item | ODR6 | ODR8 | ODR10 |
| Pixel pitch | 6.66mm | 8mm | 10mm |
| LED type | SMD3535 | SMD3535 | SMD3535 |
| Module size | 320x160mm | 320x160mm | 320x160mm |
| Module resolution | 48x24 | 40x20 | 32x16 |
| Cabinet resolution | 96x96 | 80x80 | 64x64 |
| Cabinet size(W x H) | 640x640mm | 640x640mm | 640x640mm |
| Density | 22,477 dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ |
| Brightness | ≥5500 NIT | ≥5500 NIT | ≥5000 NIT |
| Scan | 1/6 | 1/5 | 1/4 |
| Max power consumption | 730 W/㎡ | 730 W/㎡ | 780 W/㎡ |
| Ave power consumption | 330W/㎡ | 330W/㎡ | 340W/㎡ |
| Cabinet weight | 14.5 KG | 14.5KG | 14.5KG |
| Refresh rate | ≥2000Hz | ≥2000Hz | ≥2000Hz |
| View angle(Horizontal/Vertical) | 140°/140° | 140°/140° | 140°/140° |
| Working voltage | AC 110v/220v 50-60Hz | AC 110v/220v 50-60Hz | AC 110v/220v 50-60Hz |
| Operation temperature | -20°C ~ +50°C | -20°C ~ +50°C | -20°C ~ +50°C |
| Operation Humdity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Protection level | IP65 / IP65 | IP65 / IP65 | IP65 / IP65 |
