NPT Cable Gland
Quantité : 130000 pcs Prix : $0.02~$0.40 per piec
The outstanding features of this series of cable glands are safe, durable, and economical. Our NPT cable gland is Made of PA nylon material, with long service life, good toughness, wear-resistance and oxidation resistance.
NPT Cable Gland Specifications
|
Product |
PLASTIC CABLE GLAND NPT THREAD |
|
Category |
Plastic Cable Gland |
|
Thread |
NPT Thread |
|
Connector Type |
Installable Straight |
|
Locking System/ Mating Style |
Screw |
|
Material |
Sealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR). |
|
Working termperature: |
-40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade. |
|
Characteristics |
Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, ,grease and general solvent. |
|
IP Rating |
IPX7 |
|
Standard |
UL94 V2 |
|
Additional Description |
With washer and lock nut |
|
Color |
Gray, black cable glands are usually in stock . Other colors can be customized on request |

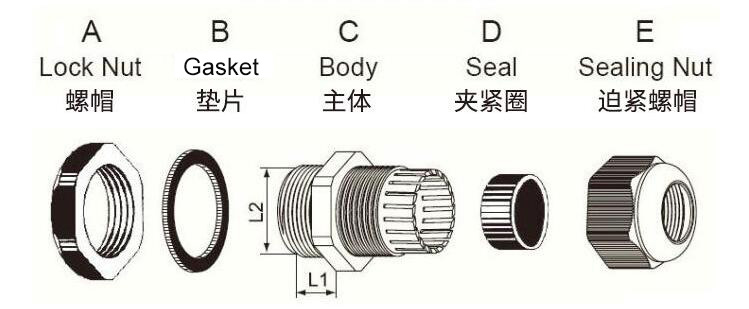

NPT Cable Gland Full Form and Drawing
|
Model |
Thread Size |
Cable Range (mm) |
Thread OD L2 (mm) |
Thread Length LI (mm) |
Spanner Size A & E (mm) |
Qty/bag |
|
NPT3/8" |
NPT3/8・ |
6 ~ 10 |
17.1 |
15 |
22 |
100 |
|
NPT3/8" |
NPT3/8, |
4-8 |
17.1 |
15 |
22 |
100 |
|
NPT1/2" |
NPT1/2" |
8 ~ 14 |
21.3 |
15 |
27 |
100 |
|
NPT1/2" |
NPT1/2, |
6-11 |
21.3 |
15 |
27 |
100 |
|
NPT3/4" |
NPT3/4* |
12 ~ 18 |
26.6 |
15 |
33 |
100 |
|
NPT3/4" |
NPT3/4" |
10 - 16 |
26.6 |
15 |
33 |
100 |
|
NPT1" |
NPT1* |
18 - 25 |
33.5 |
17 |
41 |
20 |
|
NPT1" |
NPT1* |
16 ~ 22 |
33.5 |
17 |
41 |
20 |
|
NPT1 1/4 |
NPT1 1/4 |
24 ~ 32 |
42 |
17 |
50 |
20 |
|
NPT1 1/4 |
NPT1 1/4 |
20 - 25 |
42 |
17 |
50 |
20 |
|
NPT1 1/2 |
NPT1 1/2 |
22 ~ 32 |
48 |
17 |
57 |
20 |
|
NPT1 1/2 |
NPT1 1/2 |
20 - 26 |
48 |
17 |
57 |
20 |
NPT Cable Glands Details
High Quality Seal For Plastic Cable Gland Saichuang
The seal of the cable gland is specially designed. It has high toughness and won't make any damage to the cable. The material of the seal is good and relatively thick, which ensures the tightness of the cable gland.
Lock Nut Of Pg Thread Cable Gland Saichuang
The lock nuts are strictly manufactured. The surface is neat and smooth, no burrs, and the threads are neat and clear, which ensures the tightness and fixability of the cable gland.
Npt Plastic Cable Gland Saichuang
The NPT cable gland produced by Saichuang has good sealing and waterproof performance, which can ensure cable safety.The surface is smooth, no burrs. And the cable gland is durable.
Sealing Nut Of Pg Thread Cable Gland Saichuang
This waterproof cable gland is made of PA material. The surface is shiny,smooth and it has high toughness, strong pressure resistance, anti-aging, firm surface and long service life.
SAICHUANG is a professional cable tie supplier, we provide npt cord grip, cable npt, National Pipe Thread and etc. Want to know more, please contact us.RFQ today.
