NOVA ALL IN ONE SOLAR STREET LIGHT
Related Videos
SOKOYO Load Container
Conco Series Solar Street Lights
INTENSE All In Two Solar Street Light
SOKOYO Solar Lighting Product Introduction

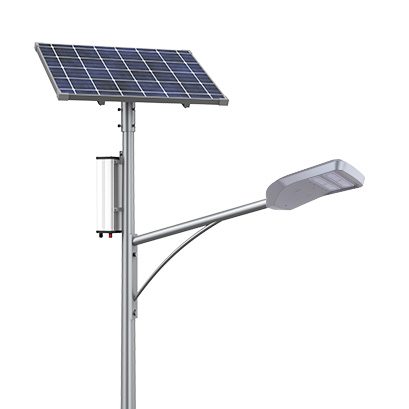

The NOVA all-in-one solar street light is a small solar power generated system that uses solar panels to supply power, storing the power in lithium batteries, and supplying the power from the lithium batteries to LED lights at night.
The power supply system of this 100w all-in-one solar street light is easy to install on the lamp pole and looks very great either on main streets or on country roads.
The power supply system of this 60w all-in-one solar street light is mainly composed of solar panels, lithium batteries, photovoltaic controllers, lamps, LED modules as well as other patent accessories.
This series of all in one integrated solar street light is easy to install on the lamp pole and looks very great either on main streets or on country roads. Our special design is to put the battery box out of the lamp body, which is very convenient for after-sale maintenance if any need in the future. The cover of Nova series uses special aluminum and iron raw material. The holes on the cover are not only good-looking but also help dissipate the heat. The whole lamp is elegantly designed, but with strong technical support and great performance.
As a professional solar LED street light factory, SOKOYO is always available with 24 hours online communication methods.
MAIN COMPONENTS OF THE NOVA INTEGRATED SOLAR LIGHT SYSTEM
|
NO |
ITEM |
QTY |
MAIN PARAMETER |
BRAND |
|
1 |
Lithium Battery |
1set |
Specification model: Rated power: 40AH Rated voltage: 12.8VDC |
SOKOYO |
|
2 |
Controller |
1pc |
Specification model: Rated voltage: 12VDC Capacity: 20A |
SOKOYO |
|
3 |
Lamps |
1pc |
Specification model: Material: profile aluminum + die-cast aluminum |
SOKOYO |
|
4 |
LED module |
1pc |
Specification model: Rated voltage: 30V Rated power: 40W |
SOKOYO |
|
5 |
Solar panel |
1pc |
Specification model: Rated Voltage: 18v Rated power: TBD |
SOKOYO |
TECHNICAL PARAMETERS OF NOVA ALL IN ONE SOLAR STREET LIGHT
|
Model Number |
KY-Y-YF-001 |
KY-Y-YF-002 |
|
Rated power of LED Light |
30W |
40W |
|
System Voltage |
DC12V |
|
|
Lithium Battery(LiFeo4) |
384WH |
512WH |
|
Solar panel |
65W/18V |
95W/18V |
|
LED chip type |
LUMILEDS3030/5050 |
|
|
Light distribution |
Bat wing light distribution (150° x 75°) |
|
|
Efficiency |
≥130LM/W |
≥130LM/W |
|
Color temperature |
3000K/4000K/5700K/6500K |
|
|
CRI |
≥Ra70 |
|
|
IP rate |
IP65 |
|
|
IK |
IK08 |
|
|
Working temperature |
-10°C ~+60° |
|
|
Products weight |
15KG |
17KG |
|
LED life span |
＞50000H |
|
|
Controller specification |
KES60 |
KES60 |
|
Mount Diameter |
φ60mm |
φ76mm |
|
Lamp Dimension |
1090x420x89mm |
1057x518x89mm |
|
Package Size |
1150x470x145mm |
1120x570x150mm |
|
Suggest mount Height |
6m/7m |
6m/7m/8m |
|
Model Number |
KY-Y-YF-003 |
KY-Y-YF-004 |
|
Rated power of LED Light |
50W |
60W |
|
System Voltage |
DC12V |
|
|
Lithium Battery(LiFeo4) |
720WH |
864WH |
|
Solar panel |
18V/130W |
18V/130W |
|
LED chip type |
LUMILEDS3030/5050 |
|
|
Light distribution |
Bat wing light distribution (150° x 75°) |
|
|
Efficiency |
130-180LM/W |
130-180LM/W |
|
Color temperature |
3000K/4000K/5700K/6500K |
|
|
CRI |
≥Ra70 |
|
|
IP rate |
IP65 |
|
|
IK |
IK08 |
|
|
Working temperature |
-10°C ~+60° |
|
|
Products weight |
22KG |
24KG |
|
LED life span |
＞50000H |
|
|
Controller specification |
KES120 |
KES120 |
|
Mount Diameter |
φ76mm |
|
|
Lamp Dimension |
1357x518x173mm |
|
|
Package Size |
1410x580x150mm |
|
|
Suggest mount Height |
7m/8m/9m |
7m/8m/9m |
