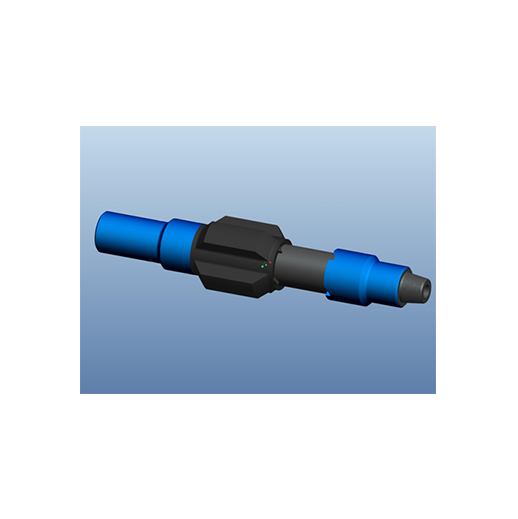

Non-rotating Stabilizer
Quantité : 500000tons Prix : $5-$200000
Non-rotating stabilizer(rubber sleeve stabilizer) is able to avoid blade wear and wall damage during. The non-rotating stabilizer consists of mandrel. Copper washer, rubber sleeve, spacer sleeve and self-locking lower sub.
During drilling, the non-rotating stabilizer transfers the torque by means of mandrel. The rubber sleeve is sliding and moving relative to the mandrel and it plays a role in stabilizer the well. A locking clutch(self-locking lower sub) will help to avoid sleeve relation during washover operation.
The Non-Rotating Stabiliser mandrel and sleeve can rotate freely and independently of each other whilst the milled flutes along the length of the sleeve provide an adequate bypass path for fluid and cuttings during operations. The stabiliser sleeves can be easily interchanged to suit the working ID whilst utilising the same mandrel for ease of use and inventory reduction.
Features:
Interchangeable sleeves for operational flexibility and inventory reduction
Phosphor bronze bearings for component wear reduction
Available in a range of sizes to suit industry standard Coiled Tubing BHA's
Large thru bore
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Connection options to suit customer requirements
Corrosion resistant material Assembly
Application:
To centralise and stabilise a Coiled Tubing BHA during operations such as milling, cutting or applications where a down hole motor is deployed.
Technical Specification:
Specifications - Non-Rotating Stabilizer |
|||||||
Sleeve |
Mandrel |
Overall Length(mm) |
Product Code |
||||
Length(mm) |
O.D.(mm) |
Blade Qty |
LD.(mm) |
Fishing O.D.(mm) |
Connection |
||
380 |
Φ155 |
4 |
Φ44 |
Φ121 |
NC38 |
1638 |
W0900301 |
380 |
Φ157 |
4 |
Φ44 |
Φ127 |
NC38 |
1638 |
W0900401 |
500 |
Φ214 |
4 |
Φ71 |
Φ165 |
NC50 |
2013 |
W0901001 |
500 |
Φ220 |
4 |
Φ71 |
Φ165 |
NCR |
2013 |
W0901201 |
500 |
Φ255 |
4 |
Φ71 |
Φ165 |
NC50 |
2013 |
W0901601 |
500 |
Φ304 |
4 |
Φ76 |
Φ203 |
6 5/8 REG |
2000 |
W0902001 |
500 |
Φ310 |
4 |
Φ76 |
Φ203 |
6 5/8 REG |
2000 |
W0902101 |
500 |
Φ313 |
4 |
Φ71 |
Φ165 |
NC50 |
2013 |
W0902103 |
500 |
Φ371 |
4 |
Φ71 |
Φ197 |
6 5/8 REG |
2013 |
W0902201 |
500 |
Φ374 |
4 |
Φ71 |
Φ203 |
6 5/8 REG |
2013 |
W0902203 |
520 |
Φ405 |
4 |
Φ76 |
Φ241 |
7 5/8 REG |
2045 |
W0902301 |
520 |
Φ430 |
4 |
Φ76 |
Φ241 |
7 5/8 REG |
2045 |
W0902401 |
520 |
Φ444 |
4 |
Φ76 |
Φ241 |
7 5/8 REG |
2045 |
W0902501 |
600 |
Φ558 |
4 |
Φ76 |
Φ241 |
7 5/8 REG |
2130 |
W0902701 |
690 |
Φ711 |
5 |
Φ76 |
Φ241 |
7 5/8 REG |
2210 |
W0903401 |
Saigao Group specializing in design, research and development, processing and manufacturing, sales and export of machinery equipment, with leading products comprising various kind of mud pumps, down-hole motors, any kinds of screen , cementing tools as well as any kinds of wellhead equipment.
Personne à contacter : Liu Rex, +86 0531 69959201
