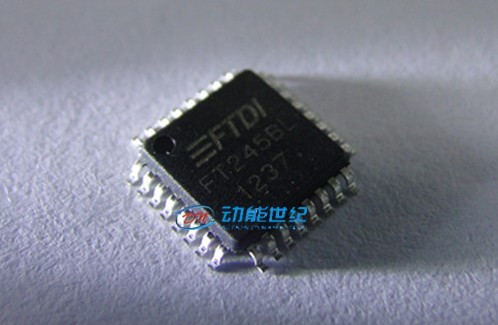

New Arrival Hot Sale FT245 FT245BL For IC USB UART device QFP32 FTDI Long Lasting

Quantité : 6000   Prix : $3.3

The FT232B is the 2nd generation of FTDI's popular USB UART device and the FT232BL is a lead free version of the FT232BM. The FT232BQ provides the same functionality as the FT232BL in a QFN-32 lead free package.
This device not only adds extra functionality to its predecessor (FT8U232AM) and reduces external component count, but also maintains a high degree of pin compatibility with the original making it easy to upgrade or cost reduce existing designs as well as increasing the potential for using this device in new application areas.

Single chip USB <=> asynchronous serial data transfer
Full handshaking & modem interface signals
UART interface supports 7/8 data bits, 1/2 stop bits and Odd/Even/Mark/Space/No Parity
Data transfer rate of 300 Baud => 3M Baud (TTL)
Data transfer rate of 300 Baud => 1M Baud (RS232)
Data transfer rate of 300 Baud => 3M Baud (RS422/RS485)
384 Byte Rx buffer/128 Byte Tx buffer for high data throughput
Adjustable Rx buffer timeout
Fully assisted hardware or X-On/X-Off handshaking
Built-in support for event characters and line break condition
Auto transmit buffer control for RS485
Support for USB suspend/resume through SLEEP# and RI# pins
Support for high power USB bus powered devices through PWREN# pin
Integrated level converter on UART and control signals for interfacing to 5V and 3.3V logic
Integrated 3.3V regulator for USB IO
Integrated Power-On-Reset circuit
Integrated 6MHz - 48Mhz clock multiplier PLL
USB Bulk or Isochronous data transfer modes
4.35V to 5.25V single supply operation
UHCI/OHCI/EHCI host controller compatible
USB 1.1 and USB 2.0 compatible
USB VID, PID, serial number and product description strings in external EEPROM
EEPROM programmable on-board via USB
Compact 32-LD LQFP or QFN-32 package
Available as a Lead-free device (FT232BL and FT232BQ) compliant to EU directive 2002/95/EG RoHS
Localisation : , 518031 Shenzhen,
Personne à contacter : Yolanda Zhou, +86 755 82539044 ext 153
