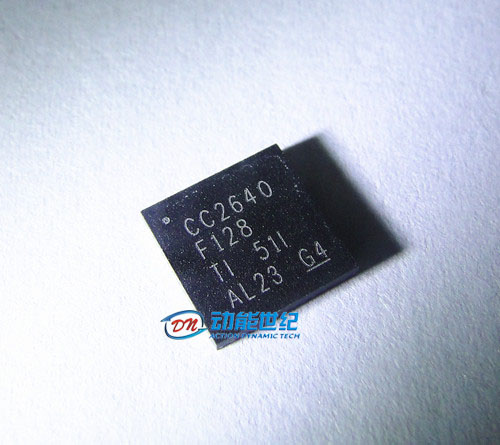

New Arrival Hot Sale CC2640 CC2640F128 CC2640F128RGZR For IC SimpleLink ultra-low power...
Quantité : 8000 Prix : $3.4
The CC2640 device is a wireless MCU targeting BluetoothSmart applications.
The device is a member of the CC26xx family of cost-effective, ultralow power, 2.4-GHz RF devices. Very low active RF and MCU current and low-power mode current consumption provide excellent battery lifetime and allow for operation on small coin cell batteries and in energy-harvesting applications.The Bluetooth Low Energy controller is embedded into ROM and runs partly on an ARM Cortex-M0 processor. This architecture improves overall system performance and power consumption and frees up flash memory for the application.
-
Microcontroller
- Powerful ARM® Cortex®-M3
- EEMBC CoreMark® Score: 142
- Up to 48-MHz Clock Speed
- 128KB of In-System Programmable Flash
- 8KB of SRAM for Cache
- 20KB of Ultralow-Leakage SRAM
- 2-Pin cJTAG and JTAG Debugging
- Supports Over-The-Air Upgrade (OTA)
-
Ultralow-Power Sensor Controller
-
Can Run Autonomous From the Rest of the
System - 16-Bit Architecture
-
2KB of Ultralow-Leakage SRAM for Code and
Data
-
Can Run Autonomous From the Rest of the
-
Efficient Code Size Architecture, Placing Drivers,
Bluetooth® Low Energy Controller, and Bootloader
in ROM -
RoHS-Compliant Packages
- 4-mm × 4-mm RSM VQFN32 (10 GPIOs)
- 5-mm × 5-mm RHB VQFN32 (15 GPIOs)
- 7-mm × 7-mm RGZ VQFN48 (31 GPIOs)
-
Peripherals
-
All Digital Peripheral Pins Can Be Routed to
Any GPIO -
Four General-Purpose Timer Modules
(Eight 16-Bit or Four 32-Bit Timers, PWM Each) -
12-Bit ADC, 200-ksamples/s, 8-Channel Analog
MUX - Continuous Time Comparator
- Ultralow-Power Analog Comparator
- Programmable Current Source
- UART
- 2× SSI (SPI, MICROWIRE, TI)
- I2C
- I2S
- Real-Time Clock (RTC)
- AES-128 Security Module
- True Random Number Generator (TRNG)
-
10, 15, or 31 GPIOs, Depending on Package
Option - Support for Eight Capacitive-Sensing Buttons
- Integrated Temperature Sensor
-
All Digital Peripheral Pins Can Be Routed to
-
External System
- On-Chip internal DC-DC Converter
- Very Few External Components
-
Seamless Integration With the SimpleLink™
CC2590 and CC2592 Range Extenders -
Pin Compatible With the SimpleLink CC13xx in
4-mm × 4-mm and 5-mm × 5-mm VQFN
Packages
-
Low Power
-
Wide Supply Voltage Range
- Normal Operation: 1.8 to 3.8 V
- External Regulator Mode: 1.7 to 1.95 V
- Active-Mode RX: 5.9 mA
- Active-Mode TX at 0 dBm: 6.1 mA
- Active-Mode TX at +5 dBm: 9.1 mA
- Active-Mode MCU: 61 µA/MHz
- Active-Mode MCU: 48.5 CoreMark/mA
- Active-Mode Sensor Controller: 8.2 µA/MHz
-
Standby: 1 µA (RTC Running and RAM/CPU
Retention) -
Shutdown: 100 nA (Wake Up on External
Events)
-
Wide Supply Voltage Range
-
RF Section
-
2.4-GHz RF Transceiver Compatible With
Bluetooth Low Energy (BLE) 4.1 Specification -
Excellent Receiver Sensitivity (–97 dBm for
BLE), Selectivity, and Blocking Performance - Link budget of 102 dB for BLE
- Programmable Output Power up to +5 dBm
- Single-Ended or Differential RF Interface
-
Suitable for Systems Targeting Compliance With
Worldwide Radio Frequency Regulations- ETSI EN 300 328 (Europe)
- EN 300 440 Class 2 (Europe)
- FCC CFR47 Part 15 (US)
- ARIB STD-T66 (Japan)
-
2.4-GHz RF Transceiver Compatible With
-
Tools and Development Environment
- Full-Feature and Low-Cost Development Kits
-
Multiple Reference Designs for Different RF
Configurations - Packet Sniffer PC Software
- Sensor Controller Studio
- SmartRF™ Studio
- SmartRF Flash Programmer 2
- IAR Embedded Workbench® for ARM
- Code Composer Studio™
Personne à contacter : Yolanda Zhou, +86 755 82539044 ext 153
Bonne affaire : acheter au vendeur
