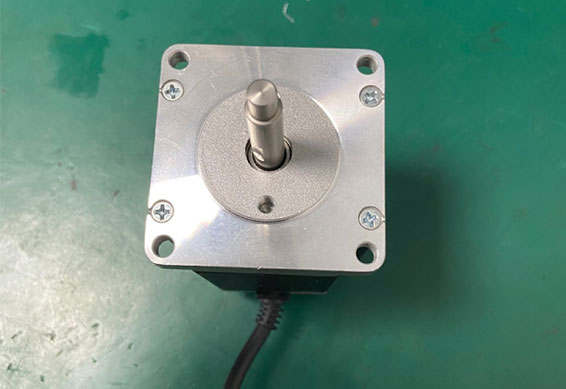

NEMA 24T SQUARE STEPPER MOTOR
NEMA 24 motor is a standard hybrid stepper motor, the step angle is 1.8°, but it is a 3-phase one.
NEMA 24T SQUARE STEPPER MOTOR BODY SIZE
NEMA 24T SQUARE STEPPER MOTOR CHARACTERISTIC PARAMETER
|
STEP ANGLE |
1.2°±5% |
|
NO. OF PHASES |
3 |
|
RATED VOLTAGE |
3.0 V |
|
RATED CURRENT |
5.0 A |
|
RESISTANCE |
0.6 ohm±0.15 AT 25° |
|
INDUCTANCE |
2.3 mH±20% AT 1kHz, 1Vrms |
|
HOLDING TORQUE |
1.5 N.m(211.5 oz.in)TYP. |
|
RUNNING TORQUE(AT --PPS) |
--V.DC, --A/PHASE |
|
DIELECTRIC STRENGTH |
500V A.C/MIN. |
|
INSULATION RESISTANCE |
100MΩ+/MIN. |
|
INSULATION CLASS |
CLASS B |
|
TEMPERATURE RISE |
80K MAX. |
|
ROTOR INERTIA |
780 g.cm²(4.29 oz.in²) |
|
WEIGHT |
APPROX. 1250g(437.5 oz) |
|
ALLOWABLE THRUST LOAD |
15N |
|
ALLOWABLE RADIAL LOAD |
75N(ON THE SHAFT END) |
|
OPERATION AMBIENT TEMP. |
‘-20℃---+50℃ |
|
OPERATION AMBIENT HUM. |
15%----90% |
|
LIFE |
5000HOURS |
NEMA 24T SQUARE STEPPER MOTOR TORQUE CURVE
SPEED VS TORQUE CURVE
MODEL: HEM-24T6303
LOT NO.: 030919
|
VOLTAGE |
24V.D.C |
○ |
SUPPLY |
|
WINDING |
|
CURRENT |
4.5A/PHASE |
○ |
PEAK |
|
AVE |
|
EXCITATION |
|
|
|
|
|
|
DRIVE CIRCUIT |
I DRIVE-4 |
|
UNIPOLAR |
# |
BIPOLAR |
|
INERTIA LOAD |
--g-cm2 |
|
|
|
|
If you want know more about stepper motor problems solutions, please visit our website.
