NEMA 23C SQUARE STEPPER MOTOR
NEMA 23C SQUARE STEPPER MOTOR

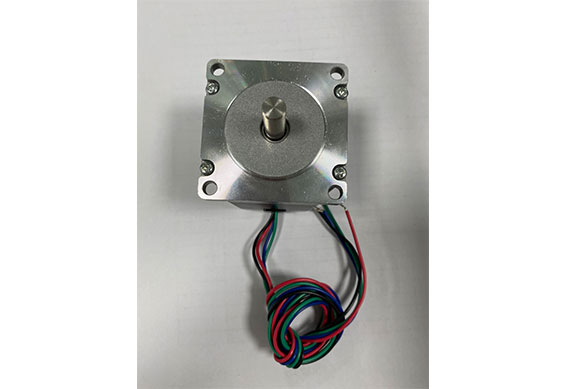

China nema 23 stepper motor is a standard hybrid stepper motor, with the size 56.4*56.4, a step angle is 0.9°.
NEMA STEPPER MOTOR CHARACTERISTIC PARAMETER
STEP ANGLE |
0.9°±5% |
NO. OF PHASES |
2 |
RATED VOLTAGE |
2.0 V |
RATED CURRENT |
5.0 A |
RESISTANCE |
0.4 ohm±0.1 AT 25° |
INDUCTANCE |
1.7 mH±20% AT 1kHz, 1Vrms |
HOLDING TORQUE |
1.6 N.m(226.2 oz.in)TYP. |
RUNNING TORQUE(AT --PPS) |
--V.DC, --A/PHASE |
DIELECTRIC STRENGTH |
500V A.C/MIN. |
INSULATION RESISTANCE |
100MΩ+/MIN. |
INSULATION CLASS |
CLASS B |
TEMPERATURE RISE |
80K MAX. |
ROTOR INERTIA |
480 g.cm²(2.64 oz.in²) |
WEIGHT |
APPROX. 1000g(35.0 oz) |
ALLOWABLE THRUST LOAD |
15N |
ALLOWABLE RADIAL LOAD |
75N(ON THE SHAFT END) |
OPERATION AMBIENT TEMP. |
‘-20℃---+50℃ |
OPERATION AMBIENT HUM. |
15%----90% |
LIFE |
5000HOURS |
NEMA 23 STEPPER MOTOR TORQUE CURVE
SPEED VS TORQUE CURVE
MODEL: HEM-23C6403
LOT NO.: 181013
VOLTAGE |
24V.D.C |
○ |
SUPPLY |
|
WINDING |
CURRENT |
4A/PHASE |
○ |
rms |
|
AVE |
EXCITATION |
Full step |
|
|
|
|
DRIVE CIRCUIT |
|
|
UNIPOLAR |
# |
BIPOLAR |
INERTIA LOAD |
--g-cm2 |
|
|
|
|
If you want to know more kinds of stepper motor, please visit our website.
