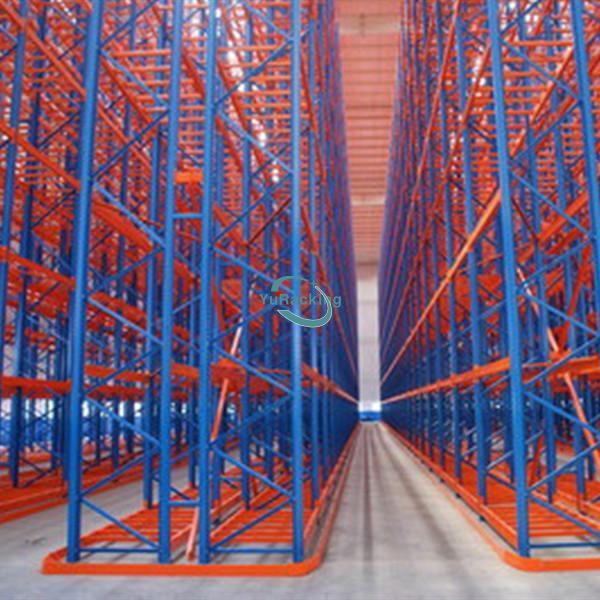

Narrow Aisle Pallet Racking

Narrow Aisle Pallet Racking is a high-density VNA Pallet Racking solution, ideal for the space limited warehouse, need less floor area for aisle (around 1.6-1.8m), and height can be up to 22m, save space greatly. The very narrow aisle (VNA) pallet racking system needs special side loading forklifts to load/unload pallets in the narrow aisle.

VNA Racking, this kind of very narrow aisle racking system, using the floor area greatly, cooperate with the special narrow aisle racking forklift, which is designed to work in the narrow aisle less than 1.6m, greatly saved space, moreover, our designer always fix the floor guide rails for the whole very narrow aisle pallet racking system, help the forklift drivers operate more easily, making the VNA Pallet Racking solution available.

Narrow Racking Aisle Advantages and Disadvantages

Narrow Aisle Pallet Racking Advantages

·

Same as selective pallet racking, 100% access to pallets;

··

Much less aisle, just need around 1.6m floor area for the aisle;

·

High density solution, can improve the space usage around 50%;

·

Floor space saving, cost effective solution.

Narrow Aisle Pallet Racking Disadvantages

·

Need special forklift for narrow aisle;

·

Compared with selective pallet racking, cost more;

·

Not commonly used in all warehouses.

The Specification of Narrow Aisle Pallet Racking

Material

Steel Q235

Size

Length: 1500-3600mm

Width: 900/1000/1100/1200mm

Height: 2000-22000mm

Thickness

1.5mm-3.0mm

Load Capacity

1000-4000kg/layer; 6000-25000kg/bay

Surface

Powder Coated or Galvanized

Feature

Anti-rust, Corrosion-protection

Aisle Size

Narrow aisle: 1600mm-1800mm

Forklift Type

Special Side Loading Forklift to Very Narrow Aisle Racking

Sample/OEM/ODM

Available

Packing

Post: pallet size: L=upright height*W1.1m*H1.1m-1.2m (GP/HQ container, total weight is below 2.5T/pallet)

Bracer: pallet size: L=bracer length*W1.1m*H1.1m

Beam: pallet size: L=beam length*W1.1m*H1.1m-1.25m (GP/HQ container)

Delivery Time

15 days after deposit

All size can be customized as your demands

Narrow Aisle Pallet Racking Beam Load Capacity

Box Beam Length (mm)

Section (mm)

Loading (Kg)

1500mm

2300mm

2400mm

2500mm

2700mm

2800mm

3000mm

3300mm

80*50*1.5mm

3400Kg

1400Kg

1300Kg

1200Kg

900Kg

800Kg

700Kg

600Kg

100*50*1.5mm

5600Kg

2500Kg

2300Kg

1800Kg

1500Kg

1400Kg

1250Kg

1000Kg

120*50*1.5mm

8900Kg

3700Kg

3500Kg

2700Kg

2300Kg

2100Kg

1850Kg

1500Kg

140*50*1.5mm

12000Kg

5300Kg

5000Kg

3800Kg

3300Kg

3100Kg

2700Kg

2200Kg

160*50*1.5mm

13500Kg

7400Kg

6800Kg

5300Kg

4500Kg

4200Kg

3600Kg

3000Kg

140*50*2.0mm

12800Kg

7000Kg

6500Kg

5000Kg

4300Kg

4000Kg

3500Kg

2900Kg

160*50*2.0mm

15000Kg

8000Kg

7400Kg

6900Kg

6000Kg

5500Kg

4500Kg

4000Kg

Narrow Aisle Pallet Racking Upright Frame Load Capacity

Upright Section Size (mm)

Beam Space

(mm)

Loading

(kg)

80*60*2.0

90*60*2.0

90*70*2.0

100*70*2.0

100*75*2.0

120*75*2.0

120*95*2.0

120*95*2.5

≧1500mm

≦5000Kg

≦7000Kg

≦8500Kg

≦10500Kg

≦12000Kg

≦14500Kg

≦16500Kg

≦18500Kg

1400-1500mm

≦6000Kg

≦8000Kg

≦9000Kg

≦11500Kg

≦13500Kg

≦15500Kg

≦18000Kg

≦20000Kg

≦1400mm

≦8000Kg

≦9000Kg

≦10000Kg

≦12500Kg

≦14500Kg

≦17500Kg

≦19500Kg

≦22000Kg

There are many racking and shelving suppliers, but we are one of the best choices for you. We provide shelving racking system, pallet rack shelving, warehouse mezzanine rack and etc.
