N42SH ARC Neodymium Magnet OD1.5 inch xID1.25 inch x0.75 inch Lx90 Degree ID N Pole
N42SH ARC Neodymium Magnet OD1.5 inch xID1.25 inch x0.75 inch Lx90 Degree ID N Pole
Similar Products
Nickel Coated N33EH Neodymium Magnet Segment
Nickel Coated N33EH Neodymium Magnet Segment
MaterialNdFeBGradeN33EHRemanence Br(kGs)Max: 11.7Min: 11.3PlatingNi-Cu-Ni (Nickel)ShapeSegmentCoercive force(kOe) Min.10.5Intrinsic Coercive force (kOe) Min.30Max energy product (MGOe)Max: 34Min: 31Max Temp (℃)...
Nickel Coated N30H Neodymium Magnet Disc
Nickel Coated N30H Neodymium Magnet Disc
Nickel Coated N30H Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated...
Magnetic Plate 1/2 inch x1/4 inch x1/16 inch Neodymium Block Magnet Oil Filter Magnet
Magnetic Plate 1/2 inch x1/4 inch x1/16 inch Neodymium Block Magnet Oil Filter Magnet
SKU Code: ATECHBL004 Dimensions: 1/2""x1/4""x1/16"" Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: through the thicknessWeight: 50 gBr Max/Gauss ratin...
Contact Now+86-010-53345989

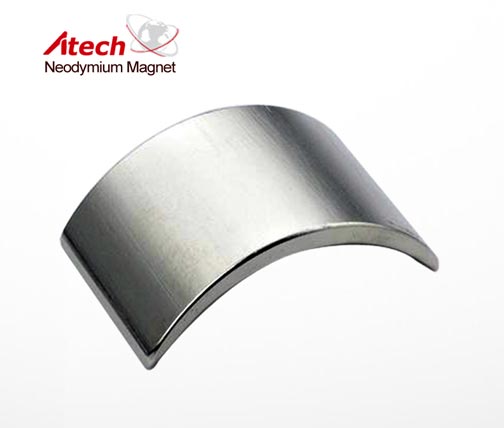

This powerful neodymium arc magnet measures OD1.5" xID1.25" x0.75" Lx90 Degree. The 4 pieces of this arc magnets can form a circle with OD=1.5" , ID=1.25" and height =0.75" with working temperature of 302 degree Fahrenheit or 150 degree celsius. It is made from an alloy of neodymium, iron and boron, plated with triple layers of nickel-copper-nickel for effective corrosion protection.
The applications of this n42sh magnet include automive & transportation, wind power energy, and other kind of high efficent motors and generators
Why Choose Us
1. ISO9001: 2015 Quality Management System certified by TUV with continuous improvements.
2. 25 years experience in neodymium magnet R & D and Manufacturing with over 1000 customized designs.
3. R & D team with multiple patents led by national "scientific and technological progress" award winner.
4. Ultimate magnetic solution provided with easy communication and fast response.
Please Note:
1. All neodymium magnets are very strong and brittle.
2. Must be handled with extreme care to avoid personal injury.
3. Eye protection should be worn when handling magnets.
4. Keep the magnets away from pacemakers.
5. The neodymium magnet should NOT be for children.
SKU Code: ATECHAR001
Dimensions: OD1.5" xID1.25" x0.75" Lx90 Degree
Tolerances: ±0.05mm
Material: NdFeB, Grade N42SH
Plating/Coating: Ni-Cu-Ni
Magnetization Direction: Diamatrically
Weight: 0.480 g
Br Max/Gauss rating: 13200 GS
Max Operating Temp: 80ºC (176ºF )
APPLICATION AREA
Automotive & Transportation
Automotive & Transportation
MORE+Clean Energy
Clean Energy
MORE+Consumer Products
Consumer Products
MORE+
