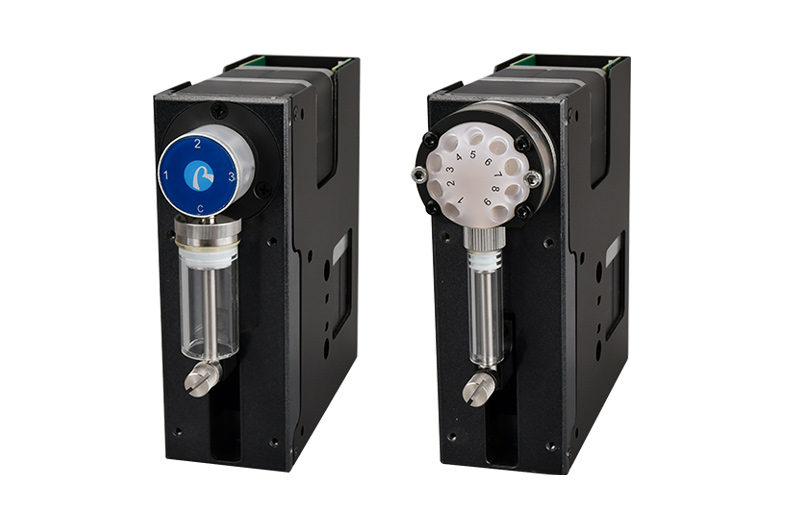

Multi Channel Syringe Pump
Multi Syringe Pump is a precision syringe pump specially designed for high precision liquid handling with a small footprint applied in limited spaces. The fluid path borosilicate glass, PCTFE, sapphire is workable for strong corrosive chemicals in a wide application range. It is available to select from a variety of syringe volumes and valve configurations.
Model Numbers of Multi Channel Syringe Pump
Smart SY-01B syringe pump is the newest member in the series of micro-syringe pumps self-developed by Runze Fluid, which can handling fluids from microliters to milliliters with extraordinary accuracy and precision. Accommodates distribution valves and syringe in a variety of configurations. Transfers liquid in high precision which can meet most users' requirements. Can be used in series with multiple pumps. The excellent performance of Smart SY-01B syringe pump provides a guarantee on the R & D and application for users. efficiency maintenance-free stepper motor drive system. Address up to 24 pumps individually via RS485 or CAN Communication.
Specification of Multi Channel Syringe Pump
|
Accuracy |
≤1%@100% stroke |
|
Precision (Repeatability) |
0.3%~0.5%@100% stroke |
|
Rated stroke (control steps) |
30mm(12000 steps standard mode; 96000 steps micro-step mode) |
|
Maximum speed |
450rpm |
|
Linear speed |
0.0067mm/s ~ 15mm/s(media: water ; 1 rated stroke=one time) |
|
Running time (per rated stroke) |
2s-4500s(media: water ; 1 rated stroke=one time) |
|
Resolution |
0.0025mm (per step) |
|
ILS Syringe |
25μl, 50μl, 125μl, 250μl. 500μl, 1.25ml, 2.5ml, 5ml |
|
Valve Model(available) |
M01、M02、M03、M04、M05、M06、M10、M12 |
|
Wetted material |
Borosilicate glass, PTFE, Sapphire, PCTFE |
|
Max. Pressure Rating |
0.7Mpa |
|
Actuator |
Trapezoidal screw (Lead 1mm/2mm) |
|
Connection |
1/4-28UNF |
|
Baud rate |
RS232/RS485: 9600bps, 38400bps |
|
Communication addres |
Up to 15 individual addresses can be provided |
|
Firmware |
Programmable acceleration/deceleration, termination of movement, programmable piston speed, diagnostic query error, programmable clearance compensation, absolute position or relative position, change speed on the fly, programmable Non-Volatile Memory |
|
Power supply |
DC24V/3A |
|
Operating temperature |
5℃~55℃ |
|
Operating humidity |
<80% relative humidity, non-condensing</span> |
|
Dimension (L*W*H) |
45*143.3*127mm |
|
Max Power |
25W |
|
Net weight |
1.5kg |
