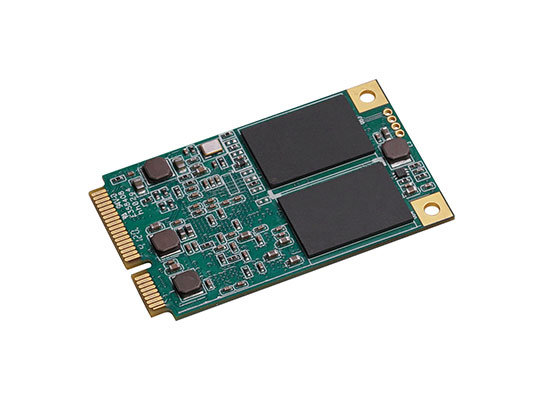

MSATA YSM600T-X-XXX
Yansen YSM600T-X-XXX is a well-balanced mSATA SSD with standard form factor and great performance. Designed in SATA 6 Gb/s interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.
Characteristics Of YANSEN mSATA YSM600T-X-XXX
|
Product Model |
YSM600T-X-XXX |
|
Flash Type |
SLC/MLC |
|
Capacity |
8GB~256GB |
|
Sequential Read（MAX） |
Up to 500MB/s |
|
Sequential Write（MAX） |
Up to 250MB/s |
|
4K Random Read |
21490 IOPS |
|
4K Random Write |
21750 IOPS |
|
Operating Temperature |
-20°C ~ 70°C, -40°C ~ 85°C |
|
Storage Temperature |
-55°C ~ +95°C |
|
Humidity |
5%-95% RH non-condensing |
|
Shock |
1500G/0.5ms |
|
Vibration |
80Hz~2000Hz/20G |
|
Operating Voltage |
DC 3.3V±5% |
|
Power Consumption（MAX） |
2.01W |
|
Dimensions |
L50.95mm*W30.0mm*H3.5mm ±0.15mm |
|
MTBF |
2 million hours |
Advantages Of YANSEN mSATA YSM600T-X-XXX
Interface: SATA3.0(6Gb/s)
66bit/1KB BCH ECC Code
Global Wear Leveling
Flash bad-block management
Flash Translation Layer: Page Mapping
Support S.M.A.R.T.
Support TRIM
Power Loss Protection
As a professional ssd company, we provide 120 gb msata, msata ssd 60gb, msata 256gb, msata 32 gb, ssd msata 128, etc. For msata ssd 512gb price or msata 256gb price, please feel free to contact us!
There are many ssd solution suppliers, but we are one of the best choices for you.
