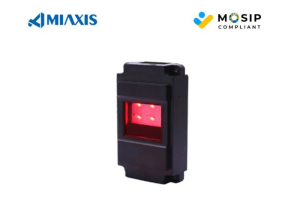

MOSIP SBI2.0 Compliant FAP20 Fingerprint Authentication OEM Module
Quantité : 10000+ Prix : USD20-USD600/unit
OVERVIEW:
MIAXIS® SM-92M-S is an FBI-PIV&FAP20 certified optical Fingerprint Authentication Module, with a durable and compact 15mm slim design. Ideal for identity authentication application scenarios. SM-92M-S can be easily assembled into mobile handheld authentication devices for indoor and outdoor uses.
FEATURES:
MOSIP Compliant
MOSIP SBI2.0 compliant fingerprint authentication module
Certificates
FBI PIB and FBI Mobile ID FAP20 certificates
Biometric standard: ISO 19794, ANSI 381, ANSI-378, WSQ, JPEG2000, MINEX III compliance
Live Fingerprint Detection
Machine-learning-based live finger detection technology to differentiate fake fingers
Auto-reject fake materials including silicon, paper, rubber and more
Easy Integration
SDKs available for Android, MS Windows and Linux compatible
UART & USB multiple interfaces
Advanced Algorithm
Template options: MIAXIS, ISO 19794-2 & ANSI 378
MIAXIS proprietary Justouch® fingerprint extractor & matcher passed NIST MINEX III compliance
Value-added customized APIs for software integration
Dustproof and Waterproof
IP65 dustproof and waterproof
Standalone Operation
1.0GHz MIPS-base Xburst Core CPU
Security
On-device encryption of fingerprint templates and supporting security protocols
SPECIFICATION:
|
Sensor Type |
Optical sensor |
|
Image Resolution |
500 dpi |
|
Image Size |
300×400 pixel |
|
FAP(fingerprint acquisition profile) |
FAP20 |
|
Image Formats |
WSQ, JPEG, RAW, BMP, ISO 19794-4, ANSI 381 |
|
Image Gray Scale |
8 bit, 256 levels |
|
Live Finger Detection |
Yes |
|
Sensing Area |
15.24×20.32mm |
|
Ingress Protection |
IP65(sensor surface) |
|
ESD Immunity |
±8kV contact discharge; ±15kV air discharge |
|
Supply Current |
≤200mA(USB powered); ≤50mA(USB powered at sleep mode) |
|
Supply Voltage |
DC 5V±5% |
|
Operating Temperature |
－10℃～＋50℃ |
|
Operating Humidity |
20%RH～90%RH |
|
Security |
FTM based, MOSIP L1 Device, SBI 2.0 |
|
Compliance |
FBI-PIV&Mobile FAP20, MOSIP L1, CE&FCC certified, MINEX III |
|
Dimensions |
33.7×56.7×15.0mm（L×W×H） |
|
Support OS |
Linux Kernel 3.X or Higher Windows 7 or Higher Android 4.1 or Higher |
Now the price of optical fingerprint module is reasonable, if you have needs to buy finger print scanner module, please contact us.
There are many biometric sensor suppliers in China, but we are one of the best choices for you.
