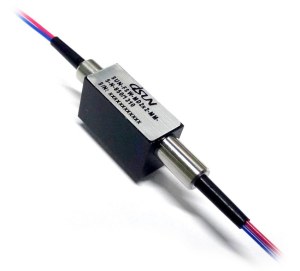

Mini Dual Optical Switch
INTRODUCTION:
Mini Dual Optical Switch - Features：
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability
·High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
Mini Dual Optical Switch - Applications：
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)
Mini Dual Optical Switch - Specification
|
Parameters |
Unit |
MD1×2 or MD2×2 or MD2×2B |
MD1×2 or MD2×2B |
|
Wavelength Range |
nm |
850±40 / 1300±40 |
1260 ~ 1650 |
|
Test Wavelength |
nm |
850 / 1310 |
1310 / 1550 |
|
Insertion Loss 1, 2, |
dB |
Typ: 0.8 Max: 1.2 |
|
|
Return Loss 1, 2, |
dB |
MM ≥ 30 SM ≥ 50 |
|
|
Crosstalk 1, |
dB |
MM ≥ 35 SM ≥ 55 |
|
|
PDL |
dB |
≤0.05 |
|
|
WDL |
dB |
≤0.3 |
|
|
Repeatability |
dB |
≤±0.02 |
|
|
Operating Voltage |
V |
5.0 |
|
|
Voltage Pulse Width (Latching)
|
ms |
≥ 20 |
|
|
Durability |
Cycles |
≥ 10 Million |
|
|
Switching Time |
ms |
≤8 |
|
|
Optical Power |
mW |
≤500 |
|
|
Operating Temperature
|
℃ |
-5 ~ +70 |
|
|
Storage Temperature
|
℃ |
-40 ~ +85 |
|
|
Relative Humidity |
% |
5 ~ 95 |
|
|
Dimension |
mm |
(L)21.0×(W)9.0×(H)12.0 ± 0.2 |
|
|
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors. |
|||
Learn more on www.glsun.com
