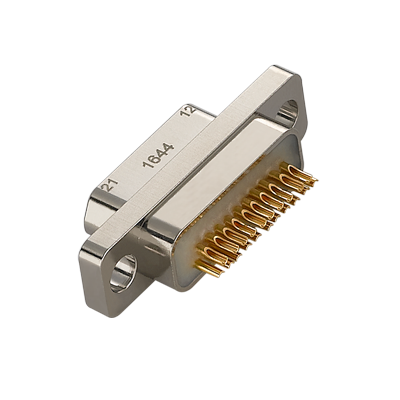

Micro Sealed Connectors
Quantité : Output cap
Description:
Hermetic connectors are used in applications where an enclosure needs to be isolated from the outside environment. Panel feed-through is the main application for this type of connector. In the vast majority of applications, the use of a hermetic encapsulant offers sufficient levels of hermeticity at a reasonable price. Only extreme environments require glass-to-metal sealing.
Furthermore, as one of the most professional hermetic connector manufacturers in China, Sunkye' fully tests its hermetic Micro-D solutions to provide reliability and satisfaction to its customers. Helium leak rate is the most common and most reliable method to quantify a small leak. Based on its expertise, Sunkye' can also design tailor-made connectors to fit your application needs.
By mounting the flange to the panel, all Sunkye' hermetic Micro-D connectors can be used to maintain low or high pressure vacuum seals. They are fully compatible with standard Micro-D connectors. A wide range of products is already available however custom interconnect solutions can be designed for specific panel cut-outs and thicknesses.
Performance of Micro Sealed Connectors
Contact Pitch * 0.050˝ (1.27 mm)
TEMPERATURE RANGES *
- STANDARD -55°C / +150°C
- HIGH TEMP -55°C / +200°C
Vibration * 10Hz-2000Hz, 196m/s2
Air Leakage Rate * 1*10-3Pa.cm3/s
Contact arrangements of Micro Sealed Connectors
Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts
Plastic shell: 9, 15, 21,25,31,37, 51 contacts
Introduction of Micro Sealed Connectors
Series * Micro D Connector
Terminal Mounting * Solder Cup mounting
High performance hermetic metal connector and PTFE wire with male Twist Pin or female connector.
Socket * Female contact, fitted to socket connector (also known as socket).
Insulator* 20% GFPPS (20% glass filled polyphenylene sulfide)
Insert * Moulded insulation housing, separating each connection.
Interfacial Seal * Fitted to socket connector only
Shell *Connector metal body plated gold.
Thickness of Gold plating * ≥1.27micron
Jackscrew *High or low profile, hexagonal socket or slotted head.
Jackpot* Mates with jackscrew.
LCP * Liquid Crystal Polymer.
Potting * Epoxy compound used as an encapsulant.
Standard connector * Manufactured to the standard dimensions and specifications.
Special connector * A standard connector modified to meet specific requirements.
Custom made connector * Designed to meet specific customer requirements.
Hermetic feed through connectors * Micro-D hermetic feed through is only available as rear panel mount connectors. Specific jackpots are used to secure the feed through on the panel.
Sealing Connector * widely Apply for the various industry which requestes for air leak flow of connector environment.
As a specialist in advanced mil spec connectors automotive, Sunkye has extensive experience in micro-miniature and nano miniature solutions based on the highly reliable Twist Pin contact technology. If you want to know more details or want a quotation , just feel free to contact us!
Personne à contacter : Wang Gloria , +85 2 69 48 67 97
