MICRO PCB CONNECTORS

MICRO PCB CONNECTORS
PCB electrical connectors are mounted on the PCB and are typically used for PCB to PCB interconnection, or to transfer to or from the PCB from another source within the unit. Sunkye Military/Space grade micro common PCB connectors qualified with MIL-DTL-83513 standard, with standard jackscrews and jackpots, making it ideal for flex-to-board applications, which widely used in the military area, aerospace, aviation, electrical, ship-building, UAV, Radar, defense system etc.
Micro PCB Connectors for Choice
Sunkye R04 MIL-DTL-83513 Micro D-Sub PCB F Type Connectors
Sunkye R04 MIL-DTL-83513 Micro D-Sub PCB S Type Connectors
Sunkye R04 MIL-DTL-83513 Micro D-Sub PCB FM Type Connectors
Sunkye R04 MIL-DTL-83513 Micro D-Sub PCB S1 Type Connectors
Description of Micro PCB Connectors
A "PCB" or Printed Circuit Board connects electrical components on a conductive track or between pads on the board. Some devices hold more than one PCB and will utilise a variety of PCB to PCB interconnect connectors to build a connection between the boards. Designed to connect printed circuit boards in a variety of settings, high voltage PCB connectors securely transmit signal and power between boards.
Performance of Micro PCB Connectors
Contact Pitch * 0.050˝ (1.27 mm)
TEMPERATURE RANGES *
- STANDARD -55°C / +150°C
- HIGH TEMP -55°C / +200°C
Random vibration * Power spectrum density 0.4G2/Hz root mean square value of total acceleration 23.1G
Shock: 735m/s2
Contact arrangements of Micro PCB Connectors
Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts
Plastic shell: 9, 15, 21,25,31,37, 51 contacts
Introduction of Micro PCB Connectors
Series * Micro D Connector
Terminal Mounting * PCB Type Including Straight to PCB and 90°angle to PCB type
PCB Tail Length * Standard 3mm
PCB Layout * 1.27*2.54mm & 2.54mm*2.54mm
Contacts *Twist pin contacts, high density interconnection, Beryllium copper (BeCu), gold over nickel plating
The thickness of Gold plating * ≥1.27micron
TWIST PIN * Male contact, fitted to plug connector.
Socket * Female contact, fitted to socket connector (also known as socket).
Insulator* 20% GFPPS (20% glass filled polyphenylene sulfide)
Insert * Moulded insulation housing, separating each connection.
Interfacial Seal * Fitted to socket connector only
Shell *Connector metal body plated nickel or cadmium.
Jackscrew *High or low profile, hexagonal socket or slotted head.
Jackpot* Mates with jackscrew.
LCP * Liquid Crystal Polymer.
Potting * Epoxy compound used as an encapsulant.
Standard connector * Manufactured to the standard dimensions and specifications.
Special connector * A standard connector modified to meet specific requirements.
Custom made connector * Designed to meet specific customer requirements.
PCB connector * widely apply for the different industry and application.

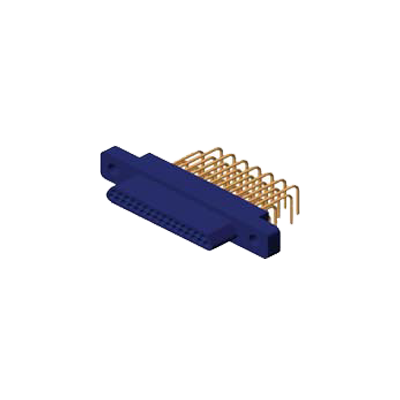

Right Angle PCB connector * Board Right Angle connector and Condensed Board Right Angle connector.
Straight PCB connector * Board Straight connector.

As one of pcb connector suppliers, we will do our best to meet all the needs of customers.

As a professional connector manufacturer especially one of the military connector manufacturers, all Sunkye mil spec electrical connectors are MIL-DTL compliant and are assembled with precision machined Becu twist pins assembled into high-temperature insulators. Through the combination of right angle pin headers plugged into vertical sockets, customers can create perpendicular mate configurations.

Now the price of mil spec connectors is reasonable, anything you need, please leave us a message.
