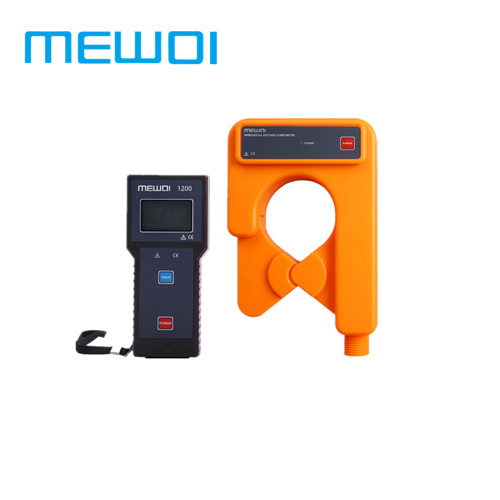

MEWOI1200C-AC 0.00mA～1000A φ68mm Wireless 60KV H/L Voltage Clamp Current Meter
Quantité : 1set Prix : 826.24USD
INTRODUCTION
|
MEWOI1200C Wireless H/L Voltage Clamp Current Meter has broken through the traditional structure, which is specially well-designed for measuring high voltage current, adopt latest CT technology and integrated mask digital technology, composed of special clamp current meter， wireless receiver and high voltage insulation rods. Wireless transmission can receive measured data within 30 meters line. Without insulation rods, it can used as high-precision low-voltage clamp meter and leakage current meter , can accurately measure the current or leakage current of 0.01mA.
MEWOI9200B Wireless H/L Voltage Clamp Current Meter adopt hook type structure of innovation, which can hook the line to test, and through wireless transmission test date can save the physical power of user, to ensure the high precision , high stability and high reliability of perennial uninterrupted measurement.
The rods of MEWOI1200C Wireless H/L Voltage Clamp Current Meter can be used for insulating sheath wires(≤60kV ) and bare wire t (≤35kV) high voltage line current measurement and online current measure below 60kV,also with the factions of peak value holding, data holding, data storage and wireless transmission , etc. It is easy to clamp or disconnect the wire by pulling-down or forwarding the insulation rods of the special clamp current meter, with the advantages of safely and time-saving. Widely used in power plant, substation industrial and mining enterprise, inspection station, electrician maintenance department for current sensing and field working. t can also be used as high and low voltage changing ratio tester , that is, respectively test the first loop and secondary loop high and low voltage change through manually calculation . The insulation rod is light and convenient, with the advantages of anti-moisture , high temperature resistance, anti-impact , bending resistance , high insulation , flexibility and other characteristics.
|
MEWOI H/L Voltage Current Clamp Meter Selection Guide(Click the "Blue"Marked model No.to view the Spec)
|
Model No. |
Product Name |
AC Range |
Definition |
Clamp Size |
Data Storge | Circuit Voltage |
Other |
|
H/L Voltage Clamp Meter |
AC 0.0mA～ 1000A |
0.0mA Automatic Shift |
φ48mm |
99sets | below 60KV(operated with insulation rod,Bare wire35KV) | ||
|
Wireless H/L Voltage Clamp Meter |
99sets | below 60KV(operated with insulation rod,Bare wire35KV) |
wireless（Distance: 30M） |
||||
|
Portable H/L Voltage Clamp Meter |
99sets | below 10KV(operated with insulation rod,Bare wire 1KV) | |||||
|
H/L Voltage Clamp Current Meter |
AC 0.00mA～600A |
0.01mA |
φ33mm |
99sets | below 60KV(operated with insulation rod,Bare wire35KV) | ||
|
Wireless H/L Voltage Clamp Current Meter |
99sets | below 60KV(operated with insulation rod,Bare wire35KV) |
wireless（Distance: 30M） |
||||
|
Portable H/L Voltage Clamp Current Meter |
99sets | below 10KV(operated with insulation rod,Bare wire 1KV) | |||||
|
H/L Voltage Clamp Current Meter |
AC 0.00mA～1000A |
0.01mA |
φ68mm |
99sets | below 60KV(operated with insulation rod,Bare wire35KV) | ||
|
Wireless H/L Voltage Clamp Current Meter |
99sets | below 60KV(operated with insulation rod,Bare wire35KV) |
wireless（Distance: 30M） |
APPLICATION
