Metric Thread Cable Gland Reinforced A Type
Prix : 1-10usd
SAICHUANG is a professional supplier of cable glands and metal cable ties for use in industrial equipment. Our cable glands are vibration resistant and with high strain relief, cost-effective and budget-friendly. They are ideal for securing cables of machines, mechanical control boards/boxes. The material of cable ties can be poly-amide or stainless steel.
Metric Thread Cable Gland Reinforced A Type

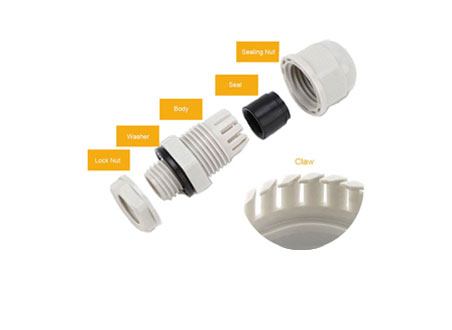

The plastic and rubber parts of the reinforced cable glands are made of the best materials. The plastic part is more solid and the surface is more wear-resistant; rubber seals and gaskets have better thickness and flexibility and are made with precision, which is 100% compatible with the cable connector, ensuring the waterproof and dustproof performance of the metric cable gland.
As a cable gland supplier, we provide high-quality metric cable glands with various metric cable glands sizes. The metric cable gland size chart is below.
Metric Thread Cable Gland Reinforced A Type Specifications
|
Product |
Metric Cable Gland Reinforced Type |
|
Category |
Plastic Cable Gland |
|
Thread |
Metric Thread |
|
Connector Type |
Installable Straight |
|
Locking System/ Mating Style |
Screw |
|
Material |
Sealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR). |
|
Working termperature: |
-40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade. |
|
Characteristics |
Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, ,grease and general solvent. |
|
IP Rating |
IPX8 |
|
Standard |
UL94 V2 |
|
Additional Description |
With washer and lock nut |
|
Color |
Gray, black cable glands are usually in stock . Other colors can be customized on request |
