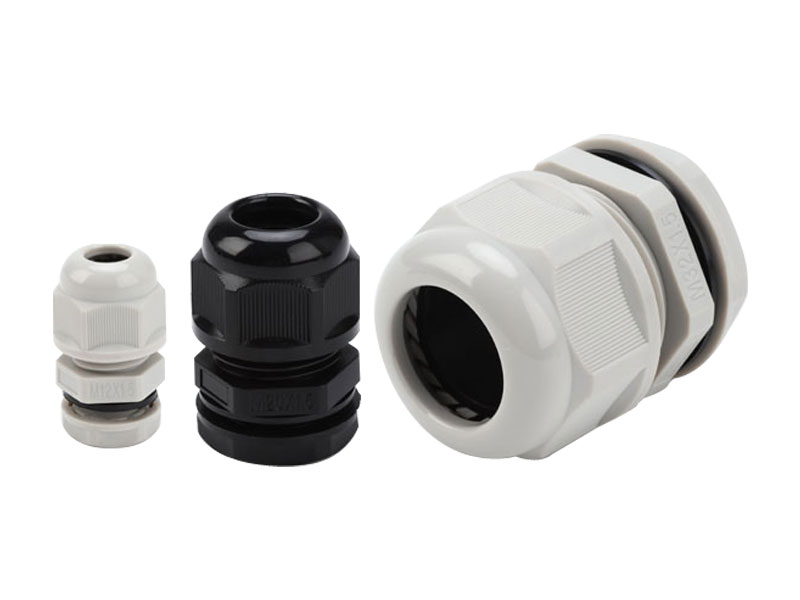

Metric Thread Cable Gland Reinforced A Type
Quantité : 130000 pcs Prix : $0.02~$0.40 per piec
The plastic and rubber parts of the reinforced cable glands are made of the best materials. The plastic part is more solid and the surface is more wear-resistant; rubber seals and gaskets have better thickness and flexibility and are made with precision, which is 100% compatible with the cable connector, ensuring the waterproof and dustproof performance of the cable gland.
As a cable gland supplier, we provide high-quality metric cable glands with various sizes. The metric cable gland size chart is below.
Metric Thread Cable Gland Reinforced A Type Specifications
|
Product |
Metric Cable Gland Reinforced Type |
|
Category |
Plastic Cable Gland |
|
Thread |
Metric Thread |
|
Connector Type |
Installable Straight |
|
Locking System/ Mating Style |
Screw |
|
Material |
Sealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR). |
|
Working termperature: |
-40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade. |
|
Characteristics |
Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, ,grease and general solvent. |
|
IP Rating |
IPX8 |
|
Standard |
UL94 V2 |
|
Additional Description |
With washer and lock nut |
|
Color |
Gray, black cable glands are usually in stock . Other colors can be customized on request |
Metric Cable Glands Sizes , Parameters and Drawing
|
Model |
Thread Size |
Cable Range (mm) |
Thread O.D. L2 (mm) |
Thread Length LI (mm) |
Spanner Size A & E (mm) |
Qty/bag |
|
M12B |
M12xl.5 |
4 - 6.8 |
12 |
8 |
17/15 |
100 |
|
M12B |
M12xl.5 |
3 - 5.5 |
12 |
8 |
17/15 |
100 |
|
M16B |
M16xl.5 |
4.5 -8 |
16 |
9 |
22/19 |
100 |
|
M16B |
M16xl.5 |
3 - 5.5 |
16 |
9 |
22/19 |
100 |
|
M18B |
M18xl.5 |
6 - 10 |
18 |
9 |
24/22 |
100 |
|
M18B |
M18xl.5 |
4 - 7 |
18 |
9 |
24/22 |
100 |
|
M20B |
M20xl.5 |
7 - 12.5 |
20 |
10 |
27/24 |
100 |
|
M20B |
M20xl.5 |
5 - 9 |
20 |
10 |
27/24 |
100 |
|
M22B |
M22xl.5 |
8.5 - 14 |
22 |
10 |
30/27 |
100 |
|
M22B |
M22xl.5 |
7 - 11 |
22 |
10 |
30/27 |
100 |
|
M28B |
M28xl.5 |
14 - 18 |
28 |
12 |
36/33 |
100 |
|
M28B |
M28xl,5 |
12 - 16 |
28 |
12 |
36/33 |
100 |
|
M36B |
M36xl.5 |
18 - 25 |
36 |
15 |
46/42 |
50 |
|
M36B |
M36xl.5 |
16 - 22 |
36 |
15 |
46/42 |
20 |
|
M46B |
M46xl.5 |
24 -32 |
46 |
15 |
57/52 |
20 |
|
M46B |
M46xl.5 |
21 - 26 |
46 |
15 |
57/52 |
20 |
|
M50B |
M50xl.5 |
31 - 41 |
50 |
16 |
64/62 |
20 |
|
M50B |
M50xl.5 |
26 - 32 |
50 |
16 |
64/62 |
20 |
|
M58B |
M58xl.5 |
35 - 45 |
58 |
16 |
70/65 |
20 |
|
M58B |
M58xl.5 |
30 - 38 |
58 |
16 |
70/65 |
20 |
Metric Thread Cable Gland Reinforced A Type Details
Claws Of Saichuang Plastic Cable Gland
A complete cable gland consists of 5 parts-sealing nut, seal, body, washer, lock nuts.
Spiral hook type clamping claw, specially designed to prevent cable movement and ensure the waterproof performance.
Gasket For Plastic Cable Gland High Quality Saichuang
Material of the washer is environmentally friendly.
Seal For Plastic Cable Gland Saichuang
Chamfer design prevents slippage。
There is horizontal design for the seal of the large-size cable glands , which help to achieve best performance to fix the cable.
Material of the seal is specifically thickened nitrile rubber, and it has very good sealing effect.
Sealing Nut Of Plastic Cable Gland Details Saichuang
Our superb production process makes the surface of the sealing nut smooth and delicate, and the internal thread is neat and clear. The design of bottom slot line can improve the waterproof performance.
SAICHUANG is a professional cable gland manufacturers, we provide nylon strain relief connectors, metric strain relief connectors, strain relief connector, stainless steel cable connector and etc. Want to know more, please contact us.RFQ today.
