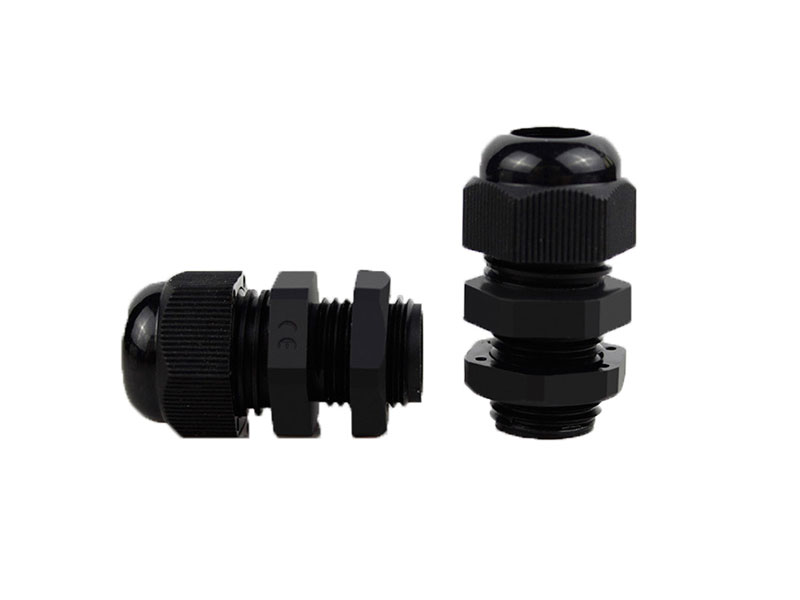

Metric Cable Gland Long Thread
The thread length of the extended cable gland, a kind of metric cable connectors, is 15-20mm, which is suitable for relatively thick distribution boxes or electrical panels. When the length of the normal size cable glands is not long enough to fit the lock nut, in this case, a long cable gland is needed. We could solve this problem by customizing length of the cable gland long thread.
The long cable gland is made of PA66 material and can be waterproof and dustproof.
If you are looking for a reliable supplier of metric cable connectors, Saichuang is your ideal choice. SAICHUANG, as a professional manufacturer of cable gland long thread, can provide long cable glands of different sizes. You can drop down and find long thread cable glands size chart below.
Metric Plastic Cable Gland Long Thread Metric Specifications
|
Product |
METRIC PLASTIC CABLE GLAND LONG THREAD |
|
Category |
Plastic Cable Gland |
|
Thread |
METRIC Thread |
|
Connector Type |
Installable Straight |
|
Locking System/ Mating Style |
Screw |
|
Material |
Sealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR). |
|
Working termperature: |
-40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade. |
|
Characteristics |
Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, ,grease and general solvent. |
|
IP Rating |
IPX7 |
|
Standard |
UL94 V2 |
|
Additional Description |
With washer and lock nut |
|
Color |
Gray, black cable glands are usually in stock . Other colors can be customized on request |
As one of the most professional nylon cable ties manufacturers, we provide zip tie plastic type, tie wrap holders, electrical ties plastic, cable gland china and etc. Want to know more? Please contact us.
