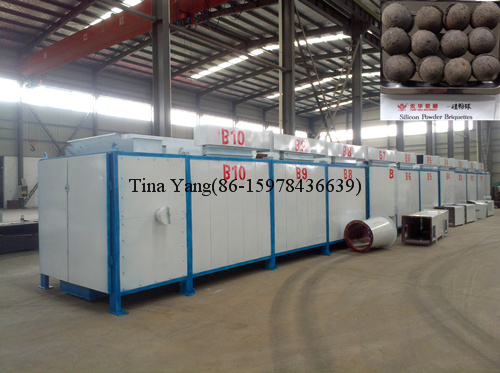

Mesh belt dryer from tina(86-15978436639)
Quantité : 1set Prix : USD2,500
Mesh Belt Dryer/Conveyor Mesh Belt Dryer
Usage:
1.Mesh belt dryer is a kind of drying equipment for batch, continuous production; it is mainly for drying of plate, strip and granular materials with better ventilation.
2.The dryer is composed of standard sections; to save place, the dryer can be made in multi layers, and the common structure includes three layers with two rooms and five layers with two rooms. with 6-40m length and 0.6-3m effective width.
Principle:
1.laid evenly on the mesh belt, driven by the transmission device, the materials move back and forth in the dryer, where hot wind passes through the material and the water vapor is discharged from the weep hole, so as to achieve the purpose of drying.
2.The conveyor dryer directly transports finished balls to the pallet conveyor, and the scraping plate on the upper end of the pallet conveyor arranges these balls evenly on the dryer, improving ventilation property of balls, achieving drying effect, ensuring continuous production of all equipment.
Feature:
1. small space to take
2. low investment
3. high efficiency
4. large output and high evaporation strength
5. standardized production; the number of segments can be increased according to the output.
Parameter data:
Model
|
Dimensions
(m)
|
Effective dryer length (single)
(m)
|
Width
(m)
|
Motor Model
|
Motor Power
(kw)
|
Capacity
(t/h)
|
20m*3layers
|
21.27*2.44*3.016
|
20
|
1.9
|
YCT200-4B
|
7.5
|
6-10
|
40m*3layers
|
42.35*2.44*3.016
|
40
|
1.9
|
YCT225-4A
|
11
|
12-16
|
Email: lixingchen0822@126.com
Cell: 86-15978436639
Personne à contacter : Tina Yang, 86 15978436639
Bonne affaire : acheter au vendeur
