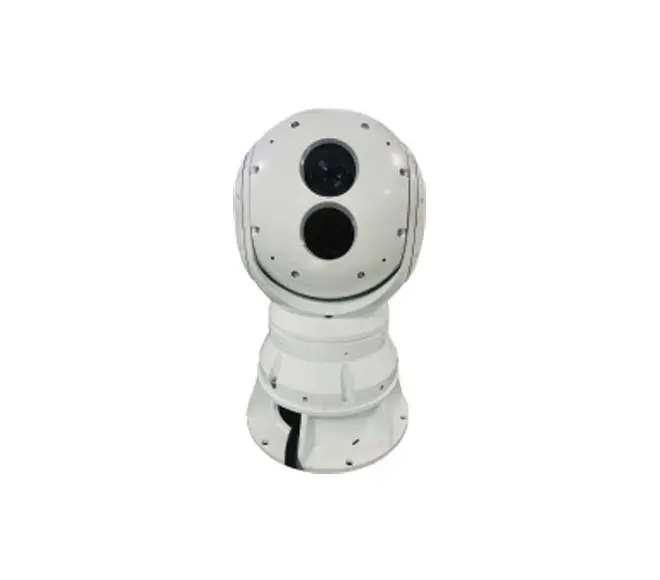

Marine Surveillance System TMG640-C129T100-L
Quantité : 500set/mon Prix : 2000usd
Boat security camera systems TMG640-C129T100-L
Military reconnaissance, targeting, search & rescue, anti-smuggling, evidence collection, security, environment inspection, navigation assistance and so on. This product can be equipped with various types of unmanned vehicles and law enforcement vessels.
Specifications of Marine System TMG640-C129T100-L
Visible Camera |
||
Detector |
1/2.8 inches |
1/1.8 inches |
Lens |
30×continuous zoom (4.3mm~129mm) |
38×continuous zoom (8mm~300mm) |
Resolution |
1080P(1920×1080) |
1080P(1920×1080) |
IR camera |
||
Detector |
Uncooled LWIR detector (8~14um) |
Uncooled LWIR detector (8~14um) |
Resolution |
640×512 |
640X512 |
Focal length |
continuous zoom 25mm~100mm |
continuous zoom 25mm~75mm |
Laser Sensor (Eye-safe Laser class-Ⅰ) |
||
Laser Ranging |
Maximum distance:3km/5km optional, Accuracy:±5m |
|
Gyro-stabilized PT |
||
Accuracy |
≤0.3mrad(1σ) |
|
Azimuth Range |
Nx360° |
|
Elevation Range |
-30°~+90° |
|
El angular Velocity |
≥80°/s |
|
Az angular Velocity |
≥80°/s |
|
El angular Acceleration |
≥200°/s² |
|
Az angular Acceleration |
≥200°/s² |
|
Electrical Interface |
||
Video Output |
Network HD Video (optional) |
|
Communication |
RS422/ Network interface |
|
Power |
||
External Power |
20~30V DC |
|
Power Consumption |
≤200W,peak≤400W |
|
Environmental |
||
Operating Temp |
-20℃~+65℃/-40℃~+65℃ |
|
Storage Temp |
-40℃~+85℃ |
|
Image Tracking |
||
Integration |
Built-in |
|
Function |
HD Auto Tracking /Auto Target Recognition(optional) |
|
General |
||
Weight |
≤30kg |
|
Dimension |
Φ300mm×500mm |
Features of Marine System TMG640-C129T100-L
Multi-optical sensors combination
High-accuracy gyro-stabilized platform
Integrate HD Auto Tracking
Anti-mold, anti-moisture, anti-salt spray, designed for operating at harsh marine environments
If you are looking for a reliable thermal imaging manufacturer, don't hesitate to contact us!
For more information about thermal camera application, please feel free to contact us!
