MACHINE DE TUBE SINOPOWER-ERW, MACHINE DE COUPE, COUPE A LONGUEUR - France, Espagne, Uk...
Quantité : 1 Prix : customized

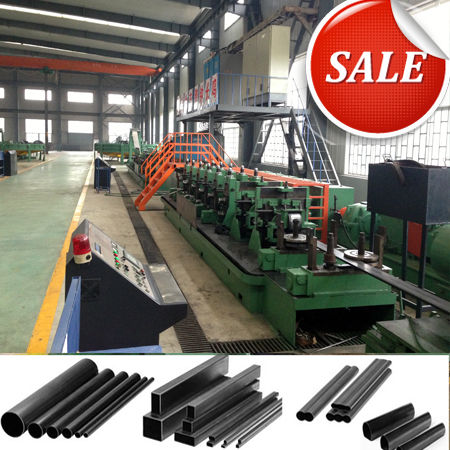

SP60(21-76mm) ERW tube mill is a series of tube machines that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. The round erw tube mill line. then be sent into the weld box where the pipe is welded by a high frequency or solid state welder. The tube mills be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipe will be cut to length and bundled. Contact email: shawn@shsinopower.com
1. Parameters of erw tube mill
Model | Unit | SP50L | SP60 | SP60L | SP76 |
Diameter of Welded Tubes | mm | 19-76 | 21-76 | 21-89 | 25-89 |
Size of Square Tube (Max.) | mm | 60x60 | 60x60 | 70x70 | 70x70 |
Size of Rectangle Tube (Max.) | mm | 40x80 | 40x60 | 60x80 | 60x80 |
Wall Thickness of Round Tube | mm | 0.8-2.5 | 1.0-3.2 | 1.2-3.2 | 1.5-4.0 |
Wall Thickness of Square Tube | mm | 0.8-2.0 | 1.0-2.5 | 1.2-2.5 | 1.5-3.5 |
Wall Thickness of Rectangle Tube | mm | 0.8-2.0 | 1.0-2.5 | 1.2-2.5 | 1.5-3.5 |
Speed of Tube Welding | m/min | 20-90 | 20-80 | 20-60 | 20-70 |
Power of Major Motor | KW | 160 | 185 | 185 | 200 |
High Frequency Power | KW | 200 | 200 | 200 | 300 |
2. Process flow of tube mills
3. Applications of tube mill line
1. Oil & Gas | 7. Wire and Cable Protection Pipe |
2. Heating Pipe | 8. Structural Support Steel Pipe |
3. Low-pressure Process Pipeline | 9. Industrial Steel |
4. Low Pressure Fire Fighting Pipeline | 10. Decoration Pipe |
5. Sewage | 11. Water Pipe |
6. Steel Scaffolding Pipe | 12. Building pipe |
4. Photos of erw tube mill
![]() Step 1-Double Side Un-coiler→
|
![]() Step 2-Shear & Butt Welder→
|
![]() Step 3-Vertical Accumulator→
|
![]() Step 3-Horizontal Accumulator→
|
![]() Step 4-Sizing →
|
![]() Step5-Welding→
|
![]() Step 6-Forming→
|
![]() Step7-Cold Saw→
|
![]() Step7-Fly Saw→
|
![]() Step 8-Run-out Table→
|
![]() Auxiliary (Rollers & molds)→
|
![]() Auxiliary (Rollers & molds)→ |
5. Final product of tube mill
Material: carbon steel, galvanized steel pipe, stainless steel, aluminum, Cu coated steel pipe, multiple-unit pipe, etc.
6. Whole series of tube mill line
Options of erw tube mill and tube mills.
Personne à contacter : XU SHAWN, +8615000437616
Bonne affaire : acheter au vendeur
