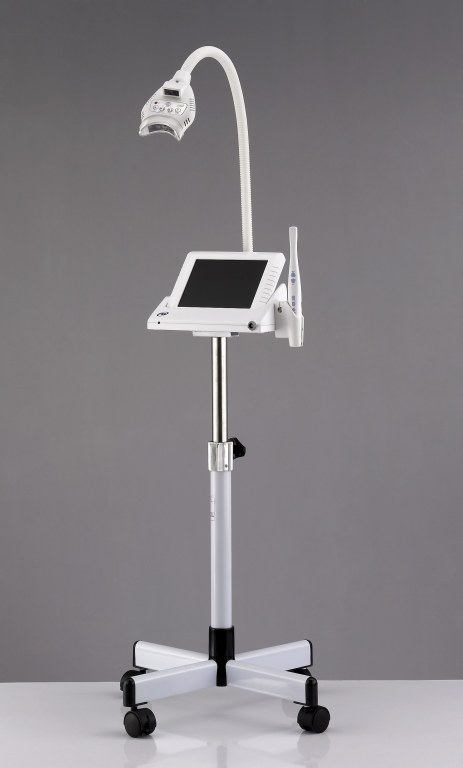

M-86A super cam 8INCH monitor with teething whitening with WIFI intra oral cameras

Product information

Product's Name Multifuntional Teeth whitening accelerator with sony CCD intra oral cameras
Brand Name SUPER CAM
Model Number M-86A+M-868+CF-988A
TV System NTSC / PAL
Picture Device 1/4" SONY CCD
Effective Pixels ( HxV ) 768 x 494 ( NTSC ) 811 x 508 ( PAL )
Blue Light LED 4 Pieces
Viewing Marco / Intra / Extra
Output Video,USB,VGA
Operation Temp. -20°C ~ 60°C
Color white
Gross Weight 8.52KG
Size 57*33*29.5CM
Voltage 100-240V, 50/60Hz
LCD Size 8 inch
Warranty Time One year
Wireless Optional M-91C transmitter + M-97C receiver
Broad Spectrum 420nm~472.5nm (Host lamps)
Light Output power up to 2000Mw/CM2
Max. Working Radius 50cm



Product function



1. Combines 8 inch LCD monitor, teeth whitening machine and an intra oral camera. It's a multi-functional all-in-one teeth whitening machine. .

2. High efficiency goose pipe design, adjust angle at random, convenient for use.

3. Combination of 4 pieces High power LED.

4. Tunable bleaching time with microprocessor-controlled timer presets.

5. The Front Five control buttons: freeze, save, previous image, next image, delete, and the reverse side control buttons: freeze and save



6 Innovative Design , it can be displayed one images, four small images, and nine small images, two kinds of capture angles, display the clear images

7. Convenient for dentist to make a contrast before and after treatment from the screen.

8. Have USB/Video/VGA output functions

9. Optional WIFI device can transmit the camera's images to mobile phone, Tablet PC and Windows system PC at the same time.

10. Can be matched with wireless transmitter and wireless receiver
