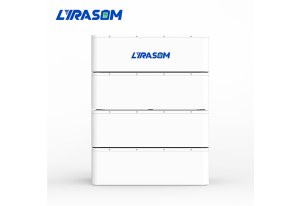

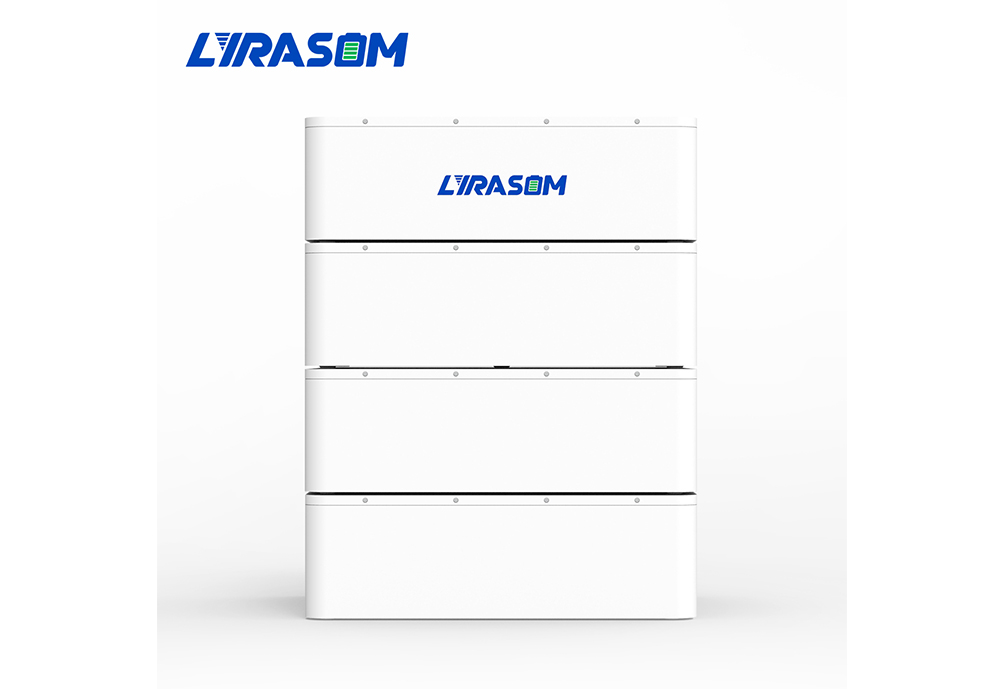

LYY48100 STACK MOUNT BATTERY
These are Stackable Modular Battery 48V/51.2V 5KWH 10KWH 20KWH 30KWH 40KWH 50KWH LiFePO4 Battery Solar Home Energy Battery Pack .
Adopt automotive-grade A cell and automobile-grade assembly process. Support parallel system and can be expanded to MW level. Support multi-battery input to improve the cycle life of batteries.
Specifications Of LYY48100 Stack Mount Battery
Module |
LYY48100 |
Batteres materials |
Lithium iron phosphate |
Series parallel mode (S series, P parallel) |
16S1P |
Nominal voltage |
51.2V |
Nominal capacity |
100Ah |
Size(mm) |
610*545*240 |
Weight |
50kg |
color |
Optional |
parallel support |
Parallel terminals are supported |
Output port mode |
terminal |
Charging way |
CC/CP/VP |
Charging current |
0.2C(standard) |
Maximum charging current |
Max0.5C @25°C |
Charge cut-off voltage |
58.4V/CELL |
Discharge way |
CC/CP/VP |
Discharge current |
0.5C |
Maximum discharge current |
Max0.6C @25°C |
Discharge cut-off voltage |
44.8V |
Communication interface |
RS485/RS232/CAN |
charging operating temperature |
charging: 0~+50°C |
Discharge operating temperature |
discharge: -20~+50°C |
The quality assurance period |
36 months |
Features Of LYY48100 Stack Mount Battery:
Maintenance free.
Modular design for easy installation and capacity expansion.
Long cycle life: 6000+ times
Bulit-in smart BMS with multiple protection and communication functions.
Wide working temperature range and high reliability.
Multiple battery units can be connected in parallel, suitable for kinds of energy storage applications.
Compatible with various charge controllers and inverters.
Widely used for off-grid solar system storage, telecom back-up, central data center... etc.
Applications Of LYY48100 Stack Mount Battery:
Residential electricity;
Villages where there is no electricity or there is insufficient electricity;
High-end villas/clubhouses;
Industrial and commercial users.
If you want to know more kinds of 72 volt lithium ion battery , please visit our website.
As one of battery energy storage system manufacturers, we will do our best to meet all the needs of customers.
