Low ESR Winding Type Series
Kamcap is devoted to the research and development of ultracap and strictly control the ultracapacitor production. Kamcap super capacitor, your best choice for supercapacitor!
Low ESR Winding Type Series
Technical data
LR Series
Performance characteristics of low ESR winding supercaps:
Low internal resistance series supercaps. This product uses a new internal design and advanced materials to ensure low ESR Cap.
Typical application of low ESR winding ultracap:
RAM, Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
Low ESR supercapacitor series specification sheet:
|
Series name |
LR Series supercaps |
|
Type name |
LR-2R7 |
|
Rated voltage VR |
2.7V |
|
Surge voltage |
2.85V |
|
Capacity range |
1F~100F |
|
Operating temperature range |
-40 ~ +70℃ |
|
Product life |
Normal temperature cycle life：25℃,1 million cycles between VR and 1/2VR , Capacity attenuation≤30% ,ESR change≤4 times. |
|
High temperature endurance life：70℃, maintain VR ,1500 hours.Capacity attenuation≤30% ,ESR change≤4 times. |

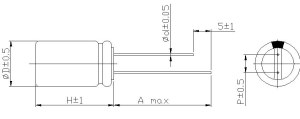

Ultracapacitor product drawings:
As one of the leading low esr capacitor manufacturers, we provide different types of supercapacitor esr products. If you need to buy super capacitor, please contact our sales team via info@kamcap.com. Enquires are welcome at any time.
Product performance list：
LR 2.7V Series products
|
Model |
Capacity F |
ESR mΩ |
Product size（mm） |
|||
|
DC |
AC 1kHz |
Diameter
|
Height |
Pin distance |
||
|
LR-2R7-J254UYJ03 |
0.25 |
300 |
150 |
5 |
12 |
2 |
|
LR-2R7-J105VYJ06 |
1 |
170 |
85 |
8 |
13 |
3.5 |
|
LR-2R7-J205VYJ07 |
2 |
105 |
70 |
8 |
20 |
3.5 |
|
LR-2R7-J205VYJ08 |
2 |
105 |
70 |
8 |
16 |
3.5 |
|
LR-2R7-J205VYJ66 |
2 |
105 |
70 |
10 |
13 |
5 |
|
LR-2R7-J205VYJ13 |
2 |
105 |
70 |
10 |
20 |
5 |
|
LR-2R7-J335VYJ07 |
3.3 |
85 |
60 |
8 |
20 |
3.5 |
|
LR-2R7-J505UYJ04 |
5 |
60 |
40 |
8 |
24 |
3.5 |
|
LR-2R7-J505VYJ13 |
5 |
85 |
55 |
10 |
20 |
5 |
|
LR-2R7-J705UYJ13 |
7 |
85 |
55 |
10 |
20 |
5 |
|
LR-2R7-J705VYJ11 |
7 |
46.5 |
30 |
10 |
25 |
5 |
|
LR-2R7-805VYJ11 |
8 |
53 |
35 |
10 |
25 |
5 |
|
LR-2R7-J106VYJ12 |
10 |
55 |
25 |
10 |
30 |
5 |
|
LR-2R7-J106VYJ09 |
10 |
55 |
25 |
12.5 |
21 |
5 |
|
LR-2R7-J256UYJ21 |
25 |
25 |
17 |
16 |
26 |
8 |
|
LR-2R7-J107UYJ28 |
100 |
10 |
5.0 |
22 |
46 |
10 |
|
LR-2R7-J107UYJ29 |
100 |
10 |
5.0 |
25.4 |
40 |
10 |
|
LR-2R7-J127VYJ30 |
120 |
9.6 |
4.8 |
25.4 |
54 |
10 |
|
LR-2R7-J157VYJ30 |
150 |
9.2 |
4.6 |
25.4 |
54 |
10 |
|
LR-2R7-J227VYJ31 |
220 |
8.0 |
4.0 |
30 |
50 |
10 |
|
LR-2R7-J307VYJ32 |
300 |
<span style="font-family: Calibri |
||||
