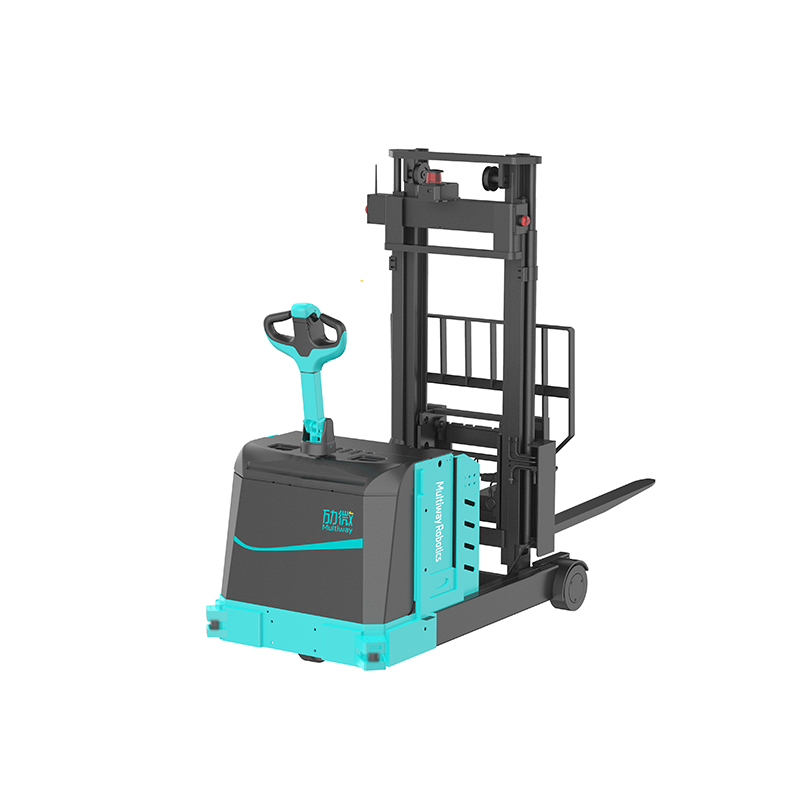

Light AGV Reach Truck
AGV Reach Truck MW-MR12/15, it has the common characteristics of self driving forklift and stacker. The combination of these two performances makes this forklift have the advantages of operational flexibility and high load. At the same time, the volume and dead weight will not increase much, which saves the working space to the greatest extent and improves utilization of warehouse space.
|
Standard Models |
MW-MR15 Light AGV Reach Truck |
|
|
Navigation |
Laser+reflector navigation |
● |
|
LiDAR SLAM navigation |
○ |
|
|
Hybrid navigation(LiDAR/Laser reflector+QR code/Magnetic nail/ceiling) |
○ |
|
|
Communication |
Wireless Wi-Fi |
● |
|
Optical communication |
○ |
|
|
5G |
○ |
|
|
Specifications |
Payload（kg） |
1500 |
|
Turning Radius（mm） |
1710 |
|
|
Lost load height （mm） |
2700【C=500】 |
|
|
Max lifting height（mm） |
4500 |
|
|
Max height payload（kg） |
1000 |
|
|
Min fork height（mm） |
50 |
|
|
Dimensions l/e/s（mm） |
1070x100x40 |
|
|
Outer fork width（mm） |
200-650 |
|
|
Aisle width【Pallet dimensions 1m(along the fork)x1.2m】（mm） |
3100 |
|
|
Pallet posture recognition width【Pallet 1m(along the fork)x1.2m】（mm） |
3550 |
|
|
Weight（kg） |
1950 |
|
|
Dimensions LxWxH（mm） |
2335x1100x2300 |
|
|
Motion capability |
Motion |
Reach, back, turning |
|
Speed(Unloaded/Max loaded)（m/s） |
1.66/1.52 |
|
|
Accuracy（Bearing wheel center）（mm） |
±5 |
|
|
Endangle accuracy（°） |
±1 |
|
|
Ditch crossing capability（mm） |
≤30 |
|
|
Obstacle crossing capability（mm） |
≤10 |
|
|
Climbing capability（mm） |
≤3°（5%） |
|
|
Safety&protection |
Manual/Auto |
● |
|
Offset protection, Abnormal positioning protection |
● |
|
|
Components malfuction, communication fault protection |
● |
|
|
Bottom front LiDAR anti-collision（1/2pcs） |
● |
|
|
3D obstacles avoidance（Front/back 1/2pcs） |
○ |
|
|
Fork front anti-collision（Light sensor） |
● |
|
|
Bumper strip（Truck head） |
○ |
|
|
Emergency button（At least 2pcs） |
● |
|
|
Sound（Speaker）alarm、Light alarm（3-color light 2pcs) |
● |
|
|
Width light（Front, left, right 3pcs） |
● |
|
|
HMI（7 inches） |
● |
|
|
Monitoring camera |
— |
|
|
Fork function |
Cargo detection |
● |
|
Cargo posture detection |
● |
|
|
Anti-pressure detection(Light sensors) |
○ |
|
|
Cargo offset detection(Ultrasonic) |
○（●More than 4m） |
|
|
Space detection(LiDAR point cloud) |
○（●More than 4m） |
|
|
Auto fork distance adjust |
○ |
|
|
Lateral offset positioning |
○ |
|
|
Inclination detection |
○ |
|
|
Battery capability |
Recharging mode |
Manual/Auto |
|
Manual recharging(Plug direct) |
● |
|
|
Battery replacing（Standard） |
Hoisting |
|
|
Lateral replacing(less capability) |
○ |
|
|
Battery type(Standard) |
LiFePO4 |
|
|
Voltage |
24V |
|
|
Standard Capability【Hoisting】 |
200Ah |
|
|
Standard Capability【Lateral】（Ah） |
200Ah |
|
|
Operation time（h） |
4-5h |
|
|
Lifetime |
3000 times, 70% left |
|
|
Recharging station（Standard） |
24V100A |
|
|
Visual function |
Pallet posture recognition（3D camera） |
● |
|
Fork feeding side detection（3D camera） |
○ |
|
|
Weight detection（Weighing module） |
○ |
|
|
Cargo falling detection（3D camera×2pcs） |
○ |
|
|
Auto inventory（2D+3D cameras） |
○ |
|
|
Bar code/RFID recognition（Reader/RFID sensor） |
○ |
|
The Advantages Of MW-MR12/15 Light AGV Reach Truck
Environment adaption: Laser navigation, no need to refit scenarios.
Intelligent running: Map building, path planning, auto recharging, self operating that meets various scenarios. Machine vision and comprehensive system enable unmanned forklift, improving flexibility.
The Features Of MW-MR12/15 Light AGV Reach Truck
High accuracy, high efficiency: Primary positioning ±5mm, secondary positioning±2mm.
Max speed 1.66m/s, max payload 1500kg, max lifting height 4.5m. 7×24h full time running.
Intelligent, safe, easy to operate: Comprehensive self detection capability.
Safe sensors + dual control system protection, 360°anti-collision, Light&Sound alarm protects.
Sustainable iteration, remote upgrading, friendly HMI.
Multiway Robotics is a automated guided vehicle manufacturers, we provide picking robots warehouse, agv warehouse, forklift robot and etc. Want to know more? Please contact us.
Personne à contacter : Robotics mwr, 0755 29985090
