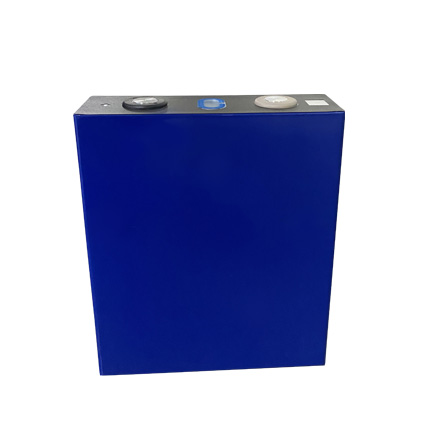

LiFePO4 230Ah Battery
Détails
Chine (Rép. pop) Informatique
Informatique

LiFePO4 230Ah Battery

Quantité : 6Gwh for c   Prix : 0.48~0.6USD/Ah

LiFePO4 230Ah battery belongs to the GB 54173 series of dimension format

Upgrade from LFP205Ah and higher energy density under similar dimension with LFP205Ah

230Ah LiFePO4 Cells series supports 1C charge and discharge rate.

4000 times outstanding cycle life with maximum reliability.

Support cells with screw terminals and nut terminals

230Ah Lifepo4 battery is suitable for material handling equipment, commercial vehicles etcetera.

LiFePO4 230Ah Battery Technical Data

No.

Item

Specification

Note

1

Rated Capacity

230Ah

@1C

2

Nominal Voltage

3.2V

3

Actual Voltage Range

2.5-3.65V

4

Constant Discharge Current

≤230A

Typical Value=115A

5

Peak Discharge Current

≤460A

@60s

6

Constant Charge Current

≤230A

Typical Value=115A

7

Peak Charge Current

≤460A

@60s

8

Operating Temperature

Charge: 0℃~55℃
Discharge: -30℃~55℃

9

Storage Temperature

﹣30℃~60℃

10

Cell Dimensions

Thickness: 53.82±0.5mm

Length: 174.00±0.5mm

Height: 204.40±0.6mm

11

Cathode Material

LFP

12

Weight

4.09±0.12kg

13

Energy density

180Wh/kg

14

Cycle life

≥4000 times

@0.5C/0.5C 100%DOD

15

Terminal

Welding/Screw/Nut terminal

If you want to buy lithium ion battery, please contact us.

As a lithium batteries factory, we will do our best to meet all the needs of customers.

Localisation : WirelessValley, No.9 East Mozhou Road, Jiangning District, 211111, Nanjing City, China, 211111 Mozhou,
Personne à contacter : battery lslithium, 0086 025 8773 9887
