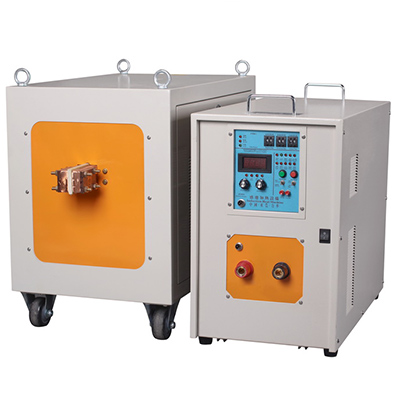

LH-80AB High Frequency Induction Heating Machine
Quantité : 100-500 Prix : 500-100000
- Fast heating speed: The workpiece can be heated within 1 second.
- Wide range of heating products: Induction heating can heat the entire metal; also it can heat a certain part of the metal.
- Easy to install: connect power supply, induction coil and water inlet and outlet pipe for use;
- The operation is easy: workers can learn in a few minutes.
- Quick start: start heating after water is connected and power is switched on.
- Less electric consumption: about 70% less than the old electronic tube high-frequency machine, the smaller the workpiece, the less electric consumption;
- Good heating performance: the heating is very uniform and fast, less oxidation, no waste after annealing;
- Protection: It is equipped with alarm indication, such as over voltage, over current, lack water and other alarm to control and protect the copper welding machine automatically.
- Heating temperature is controlled: Induction heating can heat the metal to any certain temperature including the smelting point by control the heating time to satisfy the technology request.
- 100% loading: can work for 24 hours with no stop.
- Small size, light weight, saving plant space, well working econdition, environmental protection, no noise.
- Induction heating doesn't like other normal traditional heating method; it can produce heat directly from the metal itself.
Model |
LH-80AB |
Output current |
400A-3200A |
oscillation frequency |
30-80KHZ |
Heating time |
1-99s(Auto mode) |
Input voltage |
3- phase380V, 50HZ/60HZ |
Loading rate |
100% |
Cooling method |
Water cooling |
Weight |
Host machine48KG transformer 72KG |
Cooling water flow |
0.08-0.16Mpa,9L/min |
Dimension |
Host machine L730×W345×H600 Transformer L840×W420×H660 |
Above specification is for reference only, exact specification will be based on the LIHUA lastest information.
web: http://www.lhinduction.com/products/lh-80ab-high-frequency-induction-heating-machine.html
company: Lihua Technology(HK) Industrial Co., Limited.
address: No.2 ,ZhuGang Road ,ShaTou, Chang'an Town,DongGuan City, GuangDong Province, China 523861
