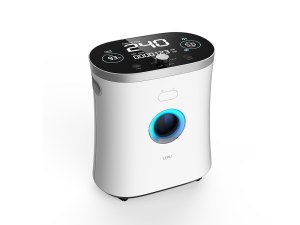

LF05A Oxygen Generator

Large-screen display

Built-in water tank

Remote control

With an atomizing function

Up to 11 alarm items

Hidden oxygen/atomizing nozzle, which is not easy to adhibit dust, and cleaner

Rear-cover storage box for storing remote control or nasal oxygen cannula

Oxygen Concentrator Generator Structural Composition

Guangshun high-quality high-power oil-free air compressor

French CECA imported molecular sieve for more lasting and stable oxygen generation

Unique Patent of Medical home oxygen concentrator with remote control

Condensate drainage design (patent)

The air compressor is designed with an inside condenser tube, in which the water condensed out of hot vapor from the air compressor is stored. Each time it is turned on, the high-speed airflow of the air compressor is controlled by a solenoid valve tospray the condensed water in the condenser tube through the atomizing port. After each shutdown, the high-speed airflow of the household oxygen generator will also be controlled by the solenoid valve to blow out the moisture in the standpipe, which reduces the amount of moisture entering the molecular sieve tower and improves the oxygen production efficiency and life of the molecular sieve.

Porous muffler hose (patent)

The porous hose of the large oxygen generator (such as made of silica gel) is designed in the inlet muffler box and the denitrogenation muffler box. When the airflow with louder noise passes through the small holes on the hoses, the acoustic energy will be largely converted into mechanical energy, thus reducing the noise emitted by the home oxygen generator and the noise during denitrogenation.

Technical Parameters

Oxygen concentration: ≥ 90% (V/V) (percent by volume at 5 L/min)

Oxygen discharge pressure: 30-60 kPa (maximum pressure at the oxygen outlet)

Atomizing rate: 0.12 ml/min - 0.90 ml/min

Running noise: ≤ 60 dB(A)

Dimension: 450mm×300mm×550mm

Net weight: ≈ 16.5 KG

Rated voltage of oxygenerator body: a.c.220V 50Hz

Classification of electric shock degree: Applied parts of BF type

Electromagnetic compatibility: Class B, Group 1 according to GB4824

Classification of safety degree: Non-AP/APG type. Not suitable when the flammable anesthetic gas is mixed with air, or oxygen or nitrous oxide

Model/specifications: LF05A

Oxygen flow: 1-5 L/min (adjustable)

Input power: 450VA

Atomizing pressure: 30~120kPa

Capacity of storage tank: About 2 ml-8 ml

Service life: 5 years

Electric shock protection classification: Class II

Degree of protection against liquid inlet: IPX0 unprotected equipment

Classification of running modes: Continuous running

Software version: V1.0

*Product registration and availability vary by country. For more information on product availability, please contact us here.

Lepu as an excellent chinese medical device manufacturers, offers a wide range of medical devices china for you to choose from.

Localisation : No.37 Chaoqian Road Changping District, Beijing, China, 102200 Beijing,
Personne à contacter : medical lepu, 86 10 80120666
