KRV 35 PP/ CF 16 VBUUR Cam Follower
Specifications of KRV 35 PP/ CF 16 VBUUR Cam Follower
|
Designation |
KRV35PP |
||
|
CF16VBUUR |
|||
|
(Mass)m≈g |
166 |
||
|

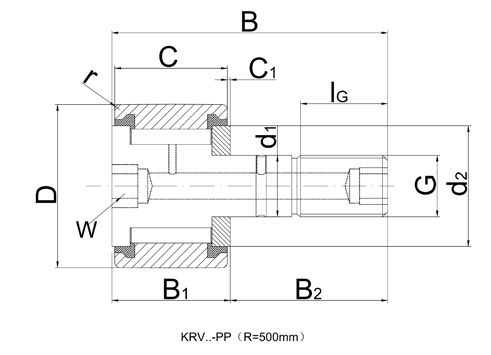

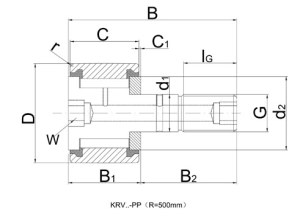

Dimensions |
D |
35 |
|
|
d1 h7 |
16 |
||
|
B |
52 |
||
|
B1 max |
19.6 |
||
|
B2 |
32.5 |
||
|
B3 |
8 |
||
|
C |
18 |
||
|
C1 |
0.8 |
||
|
r min |
0.6 |
||
|
d2 |
27.6 |
||
|
d3 |
3 |
||
|
G |
M16X1.5 |
||
|
LG |
17 |
||
|
W2) |
8 |
||
|
Eccentric sleeve |
de h9 |
- |
|
|
Be |
- |
||
|
e |
- |
||
|
Grease fitting |
NIPA2X7.5 |
||
|
Tighthening torque MA [Nm] |
58 |
||
|
Basic load rating |
Basic dynamic load rating Crw [N] |
12500 |
|
|
Basic static load rating Corw [N] |
23000 |
||
|
Fatigue load limit Curw [N] |
3150 |
||
|
Rotating speed nDG [min-1] |
1600 |
||
For more info about bearing china, please feel free to contact us!
