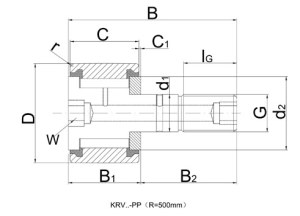

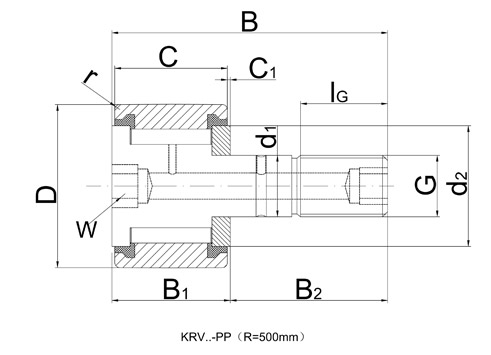

KRV 16 PP/ CF 6 VBUUR Cam Follower
Specifications of KRV 16 PP/ CF 6 VBUUR Cam Follower
|
Designation |
KRV16PP |
||
|
CF6VBUUR |
|||
|
（Mass）m≈g |
19 |
||
|
Dimensions |
D |
16 |
|
|
d1 h7 |
6 |
||
|
B |
28 |
||
|
B1 max |
12.2 |
||
|
B2 |
16 |
||
|
B3 |
|
||
|
C |
11 |
||
|
C1 |
0.6 |
||
|
r min |
0.15 |
||
|
d2 |
12.5 |
||
|
d3 |
|
||
|
G |
M6(X1) |
||
|
LG |
8 |
||
|
W2) |
- |
||
|
Eccentric sleeve |
de h9 |
- |
|
|
Be |
- |
||
|
e |
- |
||
|
Grease fitting |
NIPA1 |
||
|
Tighthening torque MA [Nm] |
3 |
||
|
Basic load rating |
Basic dynamic load rating Crw [N] |
4800 |
|
|
Basic static load rating Corw [N] |
6500 |
||
|
Fatigue load limit Curw [N] |
940 |
||
|
Rotating speed nDG [min-1] |
3800 |
||
As one of industrial bearing suppliers, we can offer kinds of related products for sale, anything you need, please contact us.
