KRD42 DOUBLE LIFT ZERO DISTANCE DROP TEST MACHINE
KRD42 series zero-distance drop tester is double lifting drop test machine, which is mainly used for packaging goods that will be impacted by a vertical drop during transportation, loading and unloading operations. It is suitable for large size packaged products to assess the effects on a specimen of simple standard tests for the purpose of assessing safety requirements. This drop testing equipment can be used as common test equipment for drop tests in scientific research institutions, universities, packaging technology testing centers, packaging material manufacturers, and foreign trade and transportation departments. KRD42 drop test machine complies with the international standard ISO2248, IEC68-2-27 and ISTA relevant standards.
FEATURES OF KRD42 DOUBLE LIFT ZERO DISTANCE DROP TEST MACHINE
- Servo closed-loop motor drive, simple structure, high reliability, smooth lifting
- Adopt a double fully automatic lifting method, and the drop height is adjustable
- PLC control is stable and reliable, the drop height can be accurately tracked and displayed in real-time
- Handheld pad + human-computer interaction software, easy to operate
- It can realize the drop test of the edge, surface, and angle of the sample
- True color full touch screen operation, convenient and quick
TECHNICAL SPECIFICATIONS OF KRD42 DOUBLE LIFT ZERO DISTANCE DROP TEST MACHINE
Model |
KRD |
KRD |
KRD |
KRD |
Parameters |
42- 500 |
42 - 800 |
42 - 1000 |
42 - 2000 |
Max.Load (kg) |
500 |
800 |
1000 |
2000 |
Drop Height (mm) |
0~1200 |
0~1000 |
0~1000 |
0~800 |
Max. Specimen Size (mm) |
1400×1400×1400 |
1500×1500×1500 |
1600×1600×1600 |
1800x1800×1800 |
Position Accuracy |
±2 |
|
||
Drop Zone Size (w*D/mm) |
2400×1600 |
2600×1700 |
2800×1800 |
3200×2000 |
Test Mode |
Face, Edge and Angle |
|||
Power |
AC 380V ±10% 5OHz |
|||
Working Environment |
Temperature range 0~40°C, humidity80% (no condense) |
|||
Standards |
ISO2248-1985(E) IEC68-2-27ISTA |
TABLE OF KRD42 DOUBLE LIFT ZERO DISTANCE DROP TEST MACHINE

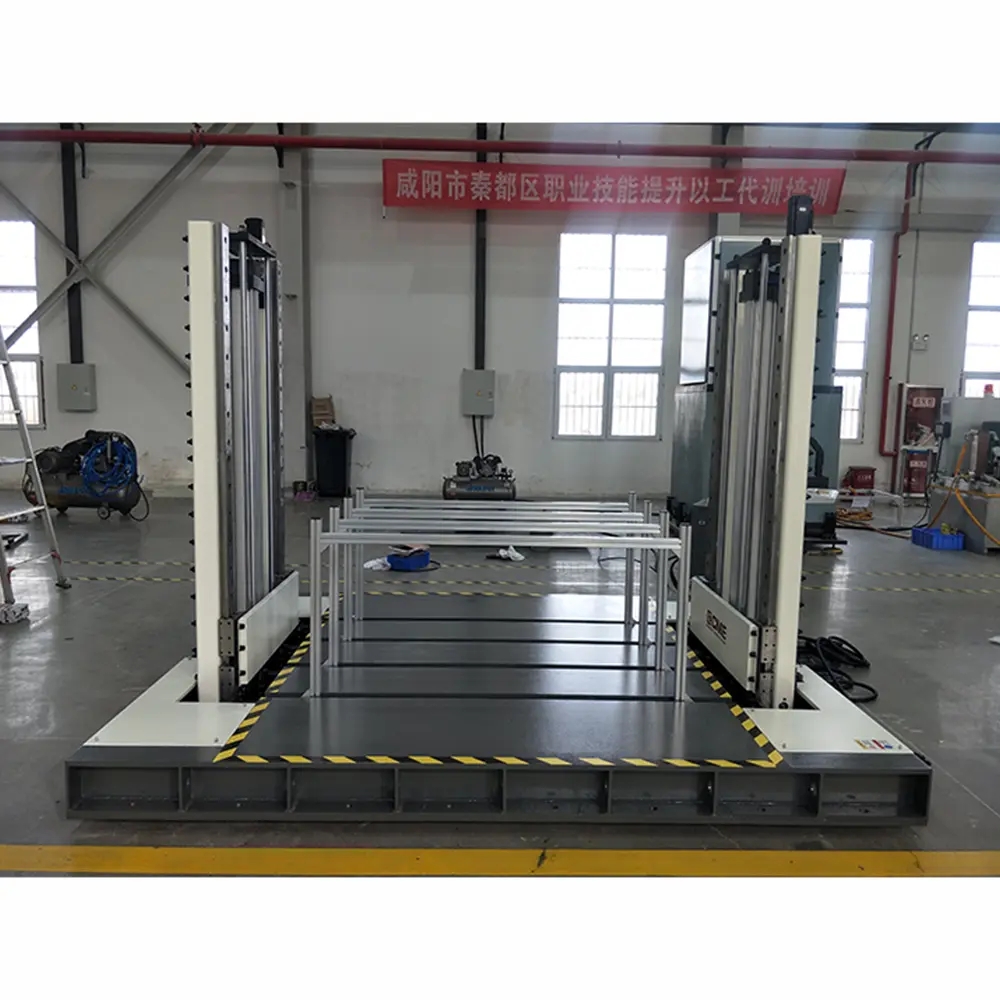

KRD42 series double lift drop test table is mainly composed of an impact plate, lifting system, a working table, guide shaft, fixtures, displacement sensor, release mechanism, etc.
The working principle of the vertical drop test system can be briefly described as the lifting cylinder lifting the working table and the test piece to a certain height, and is released by the electromagnetic release mechanism. Since the work surface adopts a compressed energy storage spring during the lifting process, the work surface falls at a speed greater than the falling speed of the test piece. The test piece keeps its original state (face, edge, and corner) and falls freely, collides with the bottom plate, and completes the test requirements.
As one of drop test equipment suppliers, we can offer sorts of related products for sale, if you have needs, please contact us.
CME Technology Co., Ltd. was established in 2006, specializing in the research, development and manufacturing of mechanical environment and reliability test equipment, our mechanical testing equipment products including shock /bump testing machine, drop test machine, transportation simulation test table, hydraulic vibration shakers, multi-DOF motion simulation table, centrifugal constant acceleration tester, packaging test machine and etc.
