KRD14 Pneumatic Vertical Shock Response Spectrum Test System

Prix : 5000-50000USD

KRD14 series shock response spectrum test system is full pneumatic driven vertical lifting SRS test equipment with special design, easy operation, reliable structure, and convenient maintenance. The shock response spectrum is intended for measuring the force of shock motion on components, equipment, and electrical and electronic products that may experience complex transient shocks, and to assess the functional adaptability and structural integrity of the test product in the shock environment. The shock spectrum is the analysis basis for the anti-shock design of the


FEATURES OF KRD14 PNEUMATIC VERTICAL SHOCK RESPONSE SPECTRUM TEST SYSTEM

Max. response acceleration up to 100,000g

Electrical control part adopts PLC and PT, simple structure, and high reliability

Built-in SRS specifications and tolerances, which are convenient for users to adjust and apply

Output actuator adopts solid-state relay and interlocking AC contact relay, small interference, and the actuator is sensitive

Table preloading pressure is adjustable. After the preloading pressure is adjusted, the preloading force of the lifting cylinder on the table is a certain value, with high accuracy and good repetition performance

Four-point lifting cylinder support: combined with a pneumatic balance lifting system, no noise, fully automatic positioning table

Energy expansion: with a multi-point excitation system, energy can be doubled

Small occupied area: the equipment takes up a small area, compact structure, easy installation, and maintenance

TABLE OF KRD14 PNEUMATIC VERTICAL SHOCK RESPONSE SPECTRUM TEST SYSTEM

KRD14 shock response spectrum test system is composed of a mechanical system (test system), pneumatic system, and control system.

KRD14 shock response spectrum test system is a shock test machine that uses an expansion shock cylinder as the power, and the shock installation table generates a response spectrum.

KRD14 shock response spectrum test table includes a working table, shock head, shock bracket, shock cylinder, programmer, base, etc.

WAVEFORM GENERATORS OF KRD14 PNEUMATIC VERTICAL SHOCK RESPONSE SPECTRUM TEST SYSTEM

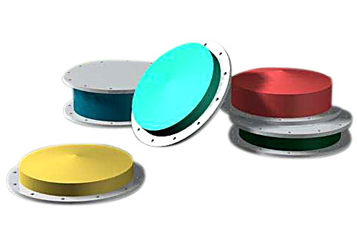

The KRD14 shock response spectrum test system is equipped with a set of the half-sine waveform generators, which is mainly made of engineering rubber (considering the stiffness and cohesive force of rubber). The waveform generator is generally designed in several different thicknesses, as shown in follow. Different thicknesses are connected in series to form a variety of stiffnesses to achieve different shock spectrum values.

CME Technology Co., Ltd. was established in 2006, specializing in the research, development and manufacturing of mechanical environment and reliability test equipment, our mechanical test equipment products including shock /bump testing machine, drop tester, transportation simulation test table, hydraulic vibration shakers, multi-DOF motion simulation table, centrifugal constant acceleration tester, packaging test machine and etc.
