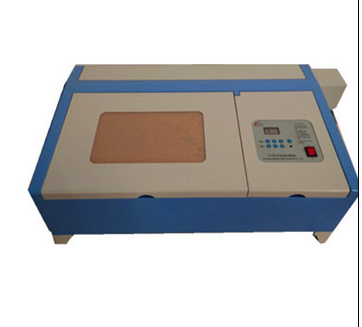

KL-320 50W high grade laser stamp machine, laser engraving cutting machine from China

Quantité : 1 set   Prix : 600$

Model Name: KL-320
1.Applicable Materials
Plastic, jade, crystal, rubber, organic glass and other non-metal materials.
2.Applicable Industry
Mainly used for the engraving and cutting of little artistic works. such as engraved portraits, badges, breast cards and various engraved packages. It can also engrave seals and crabs.
3. Technical Parameters

Model

KL-320

Power

50W

Working area

300*200mm

Positioning accuracy

0.01mm

Software

Coreldraw+corellaser

Panel

Digital panel

Up-down table

Yes(The height of up-down distance is 60mm) optional

Cellular platform

no

Engraving speed

1-500mm/s

Engraving depth

1-3mm(acrylic)

Cutting speed

1-30mm/s

Cutting depth

1-5mm(acrylic)

Air blowing protection

yes

Red-light position

yes

LED inside the box

yes

Warranty

1year(laser tube and lens 3 months)

Color

White and blue(can be customized)

Voltage

AC220±10% 50Hz/AC110±10% 60Hz

Size

90*50*32cm

Gross weight

43kg

Packing

Wooden box / international standard wooden packing

Packing size

105*62*44cm

4.RAQ:

Q1. Trade company or manufacturer?

We are manufacturer, warm welcome to visit our factory!

Q2. Is it easy to operate for the new user ?

It is very easy ,we offer you operating video for English language ,also our technician can help you via MSN ,Skype teamviewer etc.

Q3. What i need to do when the machine suffer trouble?

Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.

Q4. How to maintain the machine?

A, After 3 hours working, it's better close 10 minutes. B, Keep lens and mirrors clean. C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.

Q5. What about MOQ?

No MOQ limit ,If you purchase 20sets or more ,we will give you some discount.

Q6. Is there any other model for choose?

Yes,you can choose other model as your requirement .(According to your material & the size of your m aterial )

Q7 .How about the life-span of the laser tube ?

If you operate the machine rightly, it can reach to 1500 or 3000hours.(RECI laser tube can max to 10 000hours),It depends on your usage

For example, if it works 8 hours per day, the detailed data as follows:

1, If you set the power at 20%-30% of the total power, the service life is about 1-2years

2, If you set the power at 40-50% of the total power, the service life is about 1 year

3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months

Q8: How can I know the power of the laser tube has been exhausted?

A: you can check the color of the laser beam ,new and strong laser tube is purple when working, other wise it will be white color.

Q9: Is it better to increase blow system to improve laser processing performance?

A: It works for some kind materials,it can stop firing

Q10: How long time does it take for a learning of the laser machine operation ?

A: If you are able to use some basic graphic design software, it will only take a few hours to master t he operation, You just need to do some simple tests on different processing materials to learn how t o adjust the speed and laser power.

Q11: Is it harmful to human body when in operation ?

A: It is not harmful, as long as the laser don't direct shoot the skin and eyes.

Q12: Do I need buy two laser machines to engrave or cut separately?

A: No,our machine can fulfill two purpose .

Q13: Does it need to be connected by a laptop or computer ?

A: Yes, either is ok, It supports Windows 2000, Windows XP, Win 7 and other operating systems.

Q14: What kind of graphic format does it support?

A: JPG,PNG,BMP,PLT,DST,DXF,CDR,AL,DSB,GIF,MNG,TIF,TGA,PCX,JP2,JPC,PGX,RAS ,PNM,SKA,RAW etc.

Q15: How to distinguish laser tubes with different powers and applications?

A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)

2. Laser tube diameter(relatively speaking, the thicker,the stronger)

3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutt ing.

5.The parameters of laser tube

NORMAL TUBE

Power

Length

Diameter

40W

70cm

5cm

50W

80/845cm

5cm

60W

120cm

6cm

80W

160cm

6cm

100/130W

180cm

8cm

150W

185cm

8cm

RECI TUBE

MODEL

Rated power

Max power

Length

Diameter

Z2

90W

100W

1200mm

80mm

Z4

100W

130W

1400mm

80mm

Z6

130W

150W

1650mm

80mm

Z8

150W

170W

1850mm

90mm

6.Cutting Thickness

40W

50W

60W

80W

100W

120W

150W

Wood

3mm

5mm

7mm

10mm

12

13mm

15mm

Playwood

2mm

4mm

6mm

10mm

12mm

13mm

15mm

Glass

Leather

1mm

2mm

3mm

4mm

5mm

6mm

7mm

Acrylic

2mm

5mm

10mm

13mm

15mm

17mm

20mm

PVC

1mm

2mm

3mm

4mm

5mm

6mm

7mm

Plexiglass

1mm

2mm

4mm

8mm

10mm

12mm

15mm

Plastic(easy to melt)

1mm

1mm

2mm

3mm

4mm

5mm

6mm

Rubber

2mm

3mm

3mm

4mm

5mm

6mm

7mm

Crystal/Jade/Stone/Marble/medal

Clothing(fabric,wool)

2mm

3mm

3mm

4mm

5mm

6mm

8mm

Bamboo Works

1mm

2mm

3mm

4mm

5mm

6mm

7mm

Paper

0.5-5mm

7.Packing list

Complete machine

1 set

Air pipe

1 pc

Qualified certificate

1 pc

Reflected mirror

3 pcs

Communication cable(from computer to laser)

1pc

Warranty Certificate

1pc

Imported focus lens

1 pc

Power wire

Blower fan connector

1pc

Wind pipe

1 pc

Soft dog

1 pcs

Laser power source

1pc

Water pump

1 pc

Operational manual

2 pcs

Electricity wire

1pc

Air pump

1 set(optional

Software (CD)

1 pc

Laser power source controlling wire

1pc

water pipe

2 pcs

Control card (PCI card)

1 pc

Blower fan

1 pc(optional)

Laser tube best of China

1 pc

8.Our Services


Warm welcome to contact us whether you are dealer or end user,We will give you our professional serv ice timely and quickly.

Training Service

Our technician is available to your factory and offer training of how to use our machines.

As well, you may send your technician to our company to learn how to operate machines.

Quality Guarantee

We arrange final test before shipment. We run the machine without material for a few days, and then cut materials for test. After making sure machine is the best performance, then ship out the machine .

Operating guide

Explain the use of machines and software. Guide the customer proper use, extend product life and red uce energy consumption.

Machine maintenance&Warranty

Explain the maintenance of machine parts to extend product life and save the energy consumption

The whole set of machine warranty period is 1 year. (lens ,laser tube ,mirrors is 3 months)
