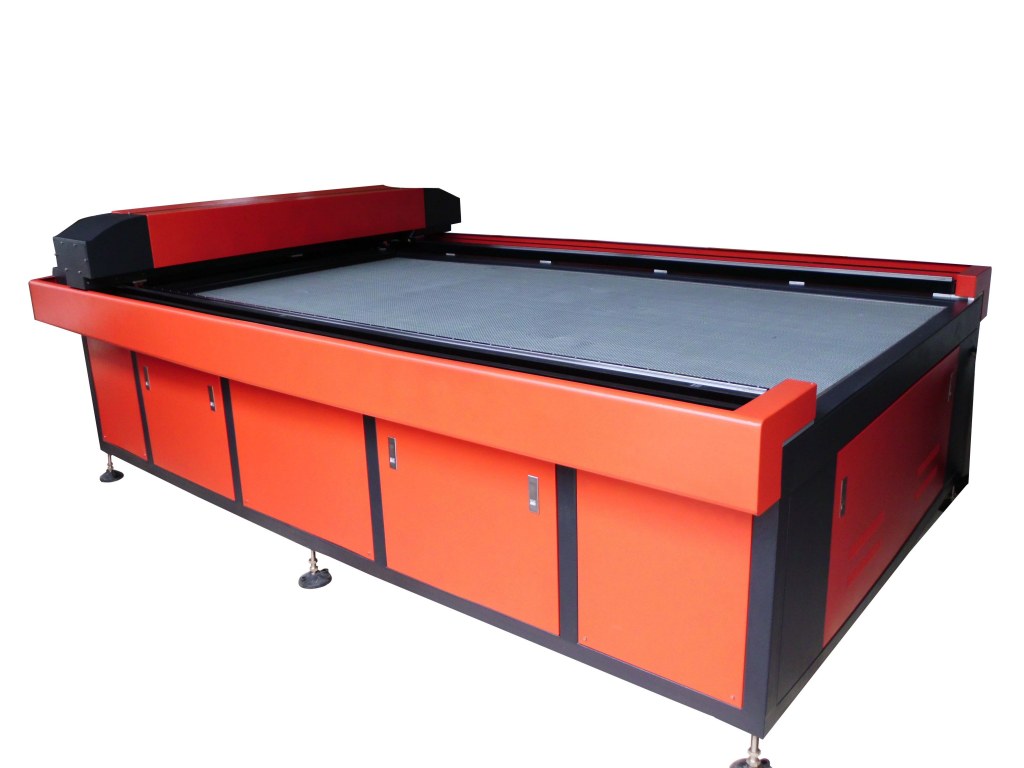

KL-1325 100W laser cutting machine

Prix : 6600$/pc

1.Applicable Materials
Plastic,acrylic, jade, crystal, rubber,leather, organic glass and other non-metal materials.
2.Applicable Industry
Widely used in advertisement,furniture processing,building model,decoration,wood,doors,wood arts and crafts,carving etc.industries.
3.Technical Parameters

Model name

KL-1325

Laser power :

100 W(optional 130W/150W)

Laser tube life Span

1500 working/hours.

Applicable Materials

Acrylic,Glass,crystal,wood,leather,cloth,rubbe r,marble,ceramic,etc.

Working area:

1300*2500 mm

Max moving speed:

1500mm/s

Laser energy control:

1-100℅ set by hand or software

Worktable:

Fixed honeycomb table/Aluminum table(optional)

Locating precision:

<0.01 mm</span>

Min shaping character:

Character: 3*3 mm,; letter: 2*2 mm

Operating temperature:

5℃-35℃

Resolution ratio:

≦4500 dpi

Laser type:

Hermetic CO2 glass tube

Power supply:

AC220±10℅50 HZ/AC110±10℅50 HZ

Control configuration:

DSP.

Data transfer interface:

USB (offline).

USB Ports

2

System environment:

WINDOWS 7/WINDOWS 8/WINDOWS XP/MAC/Vista

Cooling way:

Water cooling and protection system

Graphic format supported:

The file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,T GA,TIFF,PLT,CDR,D MG,

DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM ,SVG,SVGZ,PCT,FMV,GEM,CMX).

USER MENU

Full English.

Package Inclusion

Software,VIDEO USER MENU CD,Air pump gun,Power cables, USB cables, Water tan k,Water Pipe,Smok e Vent- pipe,Air Blow Pipe ,exhaust fan,Tools bag

Memory

64 MB

Display screen

LCD(SIZE 70*40 mm)

Protection System

Yes

Option parts

high-grade cooling system/double-head/cylinder rotary Jig/ irregular rotary Jig/ up&down tabl e/ knif es table

Guarantee

1 year, damageable spare parts(like laser tube,mirrors) 3 months

Dimensions

2700*1930*1200 mm

Dimensions(package)

2980*2000*1530 mm

Net Weight

600KGs

Gross Weight

680KGs

Recommended Ship way

sea

4. RAQ:

Q1. Trade company or manufacturer?

We are manufacturer, warm welcome to visit our factory!

Q2. Is it easy to operate for the new user ?

It is very easy ,we offer you operating video for English language ,also our technician can help you via MSN ,Skype teamviewer etc.

Q3. What i need to do when the machine suffer trouble?

Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.

Q4. How to maintain the machine?

A, After 3 hours working, it's better close 10 minutes. B, Keep lens and mirrors clean. C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.

Q5. What about MOQ?

No MOQ limit ,If you purchase 20sets or more ,we will give you some discount.

Q6. Is there any other model for choose?

Yes,you can choose other model as your requirement .(According to your material & the size of your m aterial )

Q7 .How about the life-span of the laser tube ?

If you operate the machine rightly, it can reach to 1500 or 3000hours.(RECI laser tube can max to 10 000hours),It depends on your usage

For example, if it works 8 hours per day, the detailed data as follows:

1, If you set the power at 20%-30% of the total power, the service life is about 1-2years

2, If you set the power at 40-50% of the total power, the service life is about 1 year

3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months

Q8: How can I know the power of the laser tube has been exhausted?

A: you can check the color of the laser beam ,new and strong laser tube is purple when working, other wise it will be white color.

Q9: Is it better to increase blow system to improve laser processing performance?

A: It works for some kind materials,it can stop firing

Q10: How long time does it take for a learning of the laser machine operation ?

A: If you are able to use some basic graphic design software, it will only take a few hours to master t he operation, You just need to do some simple tests on different processing materials to learn how t o adjust the speed and laser power.

Q11: Is it harmful to human body when in operation ?

A: It is not harmful, as long as the laser don't direct shoot the skin and eyes.

Q12: Do I need buy two laser machines to engrave or cut separately?

A: No,our machine can fulfill two purpose .

Q13: Does it need to be connected by a laptop or computer ?

A: Yes, either is ok, It supports Windows 2000, Windows XP, Win 7 and other operating systems.

Q14: What kind of graphic format does it support?

A: JPG,PNG,BMP,PLT,DST,DXF,CDR,AL,DSB,GIF,MNG,TIF,TGA,PCX,JP2,JPC,PGX,RAS ,PNM,SKA,RAW etc.

Q15: How to distinguish laser tubes with different powers and applications?

A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)

2. Laser tube diameter(relatively speaking, the thicker,the stronger)

3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutt ing.

5.The parameters of laser tube

NORMAL TUBE

Power

Length

Diameter

40W

70cm

5cm

50W

80/845cm

5cm

60W

120cm

6cm

80W

160cm

6cm

100/130W

180cm

8cm

150W

185cm

8cm

6. RECI TUBE

MODEL

Rated power

Max power

Length

Diameter

Z2

90W

100W

1200mm

80mm

Z4

100W

130W

1400mm

80mm

Z6

130W

150W

1650mm

80mm

Z8

150W

170W

1850mm

90mm

7.Cutting thickness

40W

50W

60W

80W

100W

120W

150W

Wood

3mm

5mm

7mm

10mm

12

13mm

15mm

Playwood

2mm

4mm

6mm

10mm

12mm

13mm

15mm

Glass

Leather

1mm

2mm

3mm

4mm

5mm

6mm

7mm

Acrylic

2mm

5mm

10mm

13mm

15mm

17mm

20mm

PVC

1mm

2mm

3mm

4mm

5mm

6mm

7mm

Plexiglass

1mm

2mm

4mm

8mm

10mm

12mm

15mm

Plastic(easy to melt)

1mm

1mm

2mm

3mm

4mm

5mm

6mm

Rubber

2mm

3mm

3mm

4mm

5mm

6mm

7mm

Crystal/Jade/Stone/Marble/medal

Clothing(fabric,wool)

2mm

3mm

3mm

4mm

5mm

6mm

8mm

Bamboo Works

1mm

2mm

3mm

4mm

5mm

6mm

7mm

Paper

0.5-5mm

8. Packing list

Complete machine

1 set

Air pipe

1 pc

Qualified certificate

1 pc

Reflected mirror

3 pcs

Communication cable(from computer to laser)

1pc

Warranty Certificate

1pc

Imported focus lens

1 pc

Power wire

1 pcs

Blower fan connector

1pc

Wind pipe

1 pc

Operational manual

2 pcs

Laser power source

1 pc

Blower fan

1 pc

Software (CD)

1 pc

Electricity wire

1 pc

Cooling system

1 set for one head

Control card (PCI card)

1 pc

Laser power source controlling wire

1 pc

Air pump

1 set

Laser tube best of China

1 pc

Reset Switch

2 pcs

water pipe

2 pcs

Soft dog

1 pc

9.Our Services
Warm welcome to contact us whether you are dealer or end user,We will give you our professional serv ice timely and quickly.

Training Service

Our technician is available to your factory and offer training of how to use our machines.

As well, you may send your technician to our company to learn how to operate machines.

Quality Guarantee

We arrange final test before shipment. We run the machine without material for a few days, and then cut materials for test. After making sure machine is the best performance, then ship out the machine .

Operating guide

Explain the use of machines and software. Guide the customer proper use, extend product life and red uce energy consumption.

Machine maintenance&Warranty

Explain the maintenance of machine parts to extend product life and save the energy consumption

The whole set of machine warranty period is 1 year. (lens ,laser tube ,mirrors is 3 months)
