JKTL heating system dn40 water ball valve
Quantité : ISO 9001
JKTL heating system dn40 water ball valve
| Number | Parts | Material |
| 1 | Valve Body | Steel .DIN St/37.0/37.8 |
| 2 | Axis Guide | Steel .DIN St/37.0/37.8 |
| 3 | Valve Ball | Stainless Steel AISI304 |
| 4 | Stem | Stainless Steel AISI304 |
| 5 | Ball Valve Seal | Carbon reinforced PTFE |
| 6 | Body Extension Tube | Steel .DIN St/37.0/37.8 |
| 7 | Handle | Galvanized Steel |
| 8 | O-ring/Stem Seal | FPM |
| 9 | Gasket | PTEF |

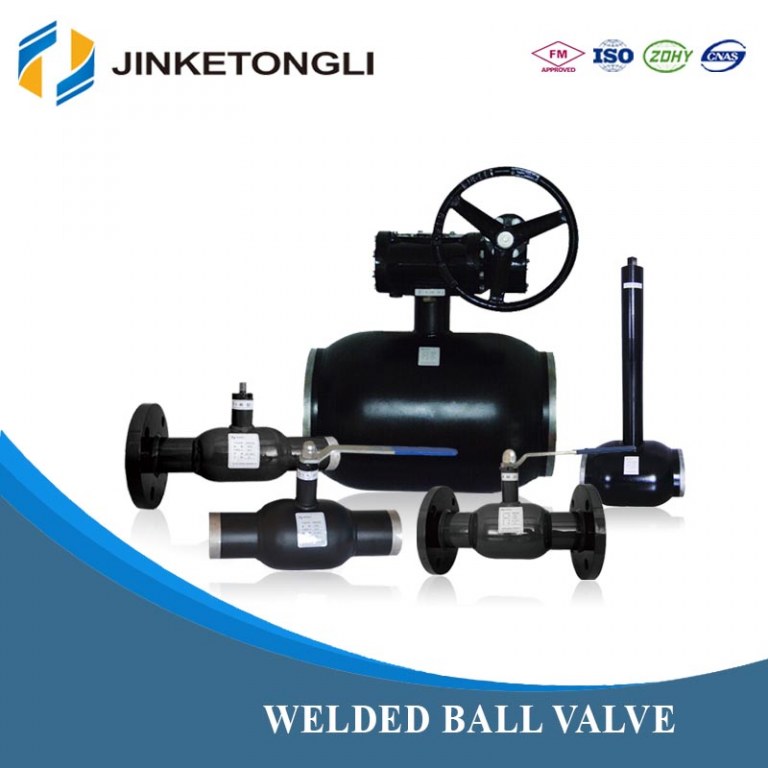

JKTL fully welded ball valve conform to one or more of the following specifications for pressure,
temperating ratings and dimensions: ASME/ANSI, ISO 14313/API6D, ISO 10423/API6A,
ISO 14723/API 6DSS, DIN, AFNOR, British standards, ISO 9000 and API Q1.
| Pressure range | ASME/ANSI Class 150 to 2500 |
| Temperature range | -20°F to 250°F (-29°C TO 121°C) |
| Body | ASTM A350 Gr. LF-2(M) |
| End connection | ASTM A350 Gr. LF-2(M) |
| Ball | ASTM A694 Gr.F50(M) Chrome plated or ENP |
| Seat ring | AISI 1040 |
| Seat load spring | AISI 1040 |
| Stem seals | PTFE |
| Lips | PTFE |
| Seat ring insert | Nylon |
Materials used in ball valve construction are equivalent at all JKTL manufacturing plants. However,
the availability of local supplies, the need to conform to national standards and to offer various trims may
necessitate some variation. In corrosive applications, valve trims may be offered using various types of
alloy and stainless steel. For more information on material specifications and properties, contact us directly.
The torque stated are for guidance only, they have been obtained by measuring on new ball valve. The
torque is to be understood as the pull-off torque applicable for a closed, but recently activated ball valve.
The valves stated may rise to a factor of 1.5 after a long period of not being in service.
Ball valve in fully open position.
Medium: water.
Density in 1000kg/m3
KVS:
| DN | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 |
| Kv | 7 | 6 | 14 | 26 | 43 | 64 | 100 | 160 | 280 | 450 | 690 |
| A×10-4 |
