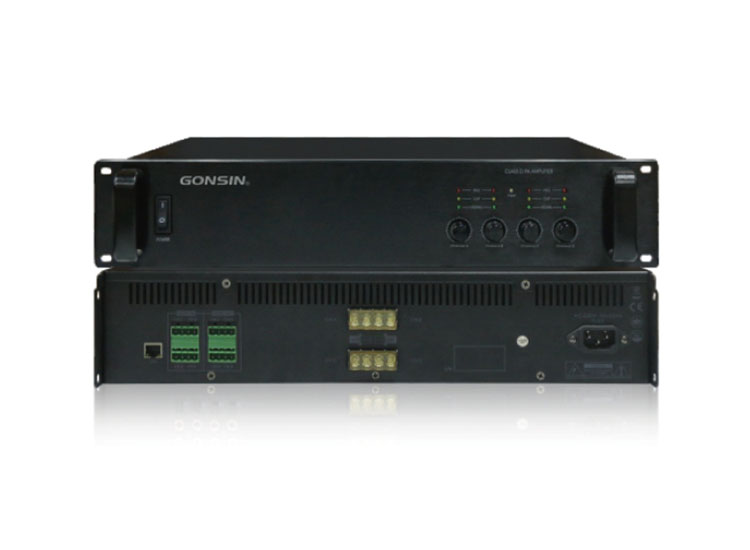

Internet Radio Amplifier
Features of Internet Radio Amplifier GX-PA4001 / GX-PA4002 / GX-PA4003 / GX-PA4004 / GX-PA4005 / GX-PA4006 / GX-PA4007 / GX-PA4008 / GX-PA4009 / GX-PA4010 / GX-PA4011
Based on TCP/IP, UDP, IGMP protocol, support LAN and WAN transmission, can be installed anywhere the network can be reached, to achieve access and control of servers and other network equipment
With 4.3-inch color capacitive touch screen, the interface is clear and easy to operate
Through Android or IOS sub-control software, you can control on-demand and paging functions in real time
Built-in 1 channel audio decoding module, supporting network audio signal conversion into analog stereo signal output, realizing playing background music, emergency paging, alarm signal, etc. from the server system
With USB interface, it supports local playback of MP3 audio in USB
Support 8~768Kbps high bit rate format playback, with high fidelity sound effects
It has 1 stereo line input and 1 microphone input, supports local audio source playback, and the microphone volume is independently adjustable
It has 2 mono line output, which can be extended to connect the power amplifier output
It has 2 sets of 100V constant voltage output, connected to constant voltage broadcast speakers, which can meet the requirements of different occasions
With 1 short circuit output, when there is a task, the short circuit triggers the work
With 1 emergency output, with 24V strong cut function
It has a 220V5A intelligent control power interface, which can be turned on and off automatically or manually. The system can be set to supply power regularly, which is intelligent and environmentally friendly.
With output short-circuit protection, output limiting protection, overload protection, overheating protection and other protective measures to ensure the safe use of power amplifiers and speakers
With indicator lights such as power indicator, signal indicator, peak clipping indicator, protection indicator, etc., the status of the power amplifier is clear at a glance
It has the characteristics of high efficiency and energy saving, light weight, small size, high power and strong load capacity
An offline storage module is optional, and it can also realize timing playback and timing ringing even when it is disconnected from the network
An optional USB Bluetooth module can be used to push audio to the terminal for playback via mobile phone Bluetooth
Optional USB 2.4G wireless microphone module to meet the needs of local microphone amplification output
Support remote server management and remote upgrade, which is convenient for users to maintain
Technical Parameters of Internet Radio Amplifier GX-PA4001 / GX-PA4002 / GX-PA4003 / GX-PA4004 / GX-PA4005 / GX-PA4006 / GX-PA4007 / GX-PA4008 / GX-PA4009 / GX-PA4010 / GX-PA4011
Model |
GX-PA4001/GX-PA4002/GX-PA4003/GX-PA4004/GX-PA4005/GX-PA4006/ GX-PA4007/GX-PA4008/GX-PA4009/GX-PA4010/GX-PA4011 |
Output power |
60W/120W/240W/360W/500W/600W/800W/1000W/1200W/1500W/2100W |
Constant voltage output |
100V±5% |
Display size |
4.3 inch capacitive touch screen |
Network interface |
RJ45*1, 100Mbps/10Mbps |
Audio interface |
AUX_IN*1, MIC_IN*1, LINE_OUT*2 |
Memory interface |
USB (U disk)*1, maximum support 128G |
Other interfaces |
USB (extension 2.4G wireless microphone)*1, short-circuit output*1, short-circuit input*1, emergency output*1, 24V forced cut power output*1 |
Support protocol |
AC220V 5A OUT*1TCP/IP, UD, IGMP |
Audio format |
Mp3 |
Audio mode |
16-bit stereo CD sound quality |
Bit rate |
8k~768Kbps |
AUX sensitivity |
-12dB |
MIC sensitivity |
-40dB |
Frequency response |
20Hz~20KHz |
Harmonic distortion |
THD≤0.1% |
Signal to noise ratio |
≥70dB |
Short circuit output |
0V<5A</span> |
Protection circuit |
overload, over temperature, short circuit protection, DC protection |
Power supply |
AC220V±10% /50Hz |
Standby power consumption |
<3W</span> |
Product size |
485×410×90mm |
Product weight |
8.48Kg/8.48Kg/8.48Kg/8.48Kg/8.5Kg/8.5Kg/8.5Kg/9.5Kg/9.5Kg/9.5 Kg/9.5Kg |
Working temperature |
-5℃~60℃ |
Environmental humidity |
20%~80% relative humidity |
As one of audio conference system suppliers china, we can offer sorts of conference room equipment for sale, if you have needs, please contact us.
