Industrial Gateway Modbus to Pa
Description

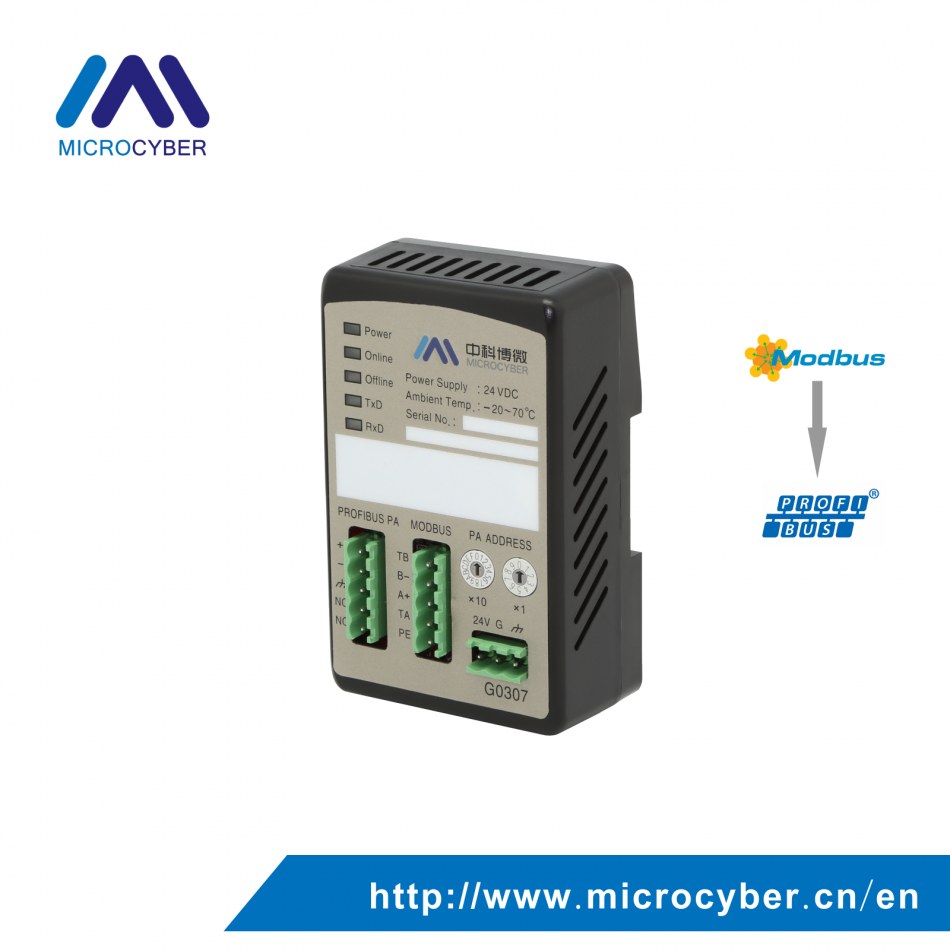

Product Name：Modbus to PA Gateway Product Model: G0307
The product realizes the converter function from Modbus RTU to PROFIBUS PA, and it shall multiple devices with Modbus RTU protocol to PROFIBUS PA network.
Device Types
According to Modbus interface, the gateway shall have 2 models:
|
Product Model |
Modbus Interface |
|
GW-MODB-PA-RS485 |
RS485 |
|
GW-MODB-PA -RS232 |
RS232 |
Basic Parameter
|
Bus Power |
9~32VDC |
|
Modbus Power |
24VDC(±20%) |
|
Current Consumption |
≤ 14mA |
|
Working Temperature |
-20℃~70℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Humility Range |
5%~95%RH |
|
Modbus Physical Interface |
RS485 (Configurable End) / RS232 |
FAQ
Q: Can I get a free electronic manual?
A: Yes, if you want it, please contact us.
Q: How many function block does G0307 Modbus to PA Gateway have?
A: G0307 Modbus to PA gateway includes 1 physical block, 4 AI function blocks, 4 AO function blocks, 4
DI function blocks and 4 DO function blocks. Each AI, AO, DI, DO has 4 channels, indicating 4 AIs, 4 AOs, 4 DIs and 4DOs.
Q: Can you provided OEM service?
A: Yes, we can, such as communication board, we can also provided fieldbus development toolkit.
