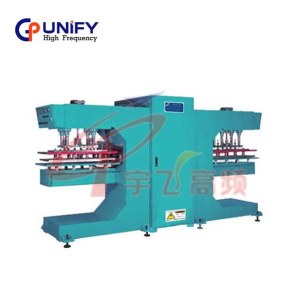

Industrial Belt Welder
Quantité : 10 SETS Prix : 10000 CNY
Mainly application of Industrial Belt Welder
Used for industrial belt skirt and belt baffles welding, welding industrial conveyor belt conveyor belt, joint, cutting, slitting, conducting bar, package edge; And running machine, mahjong machine, PVC/PU material welding
General Features of Industrial Belt Welder
Generally used for PVC, PET-G, A-PET, GAG, PU, PET, PLA materials.
The spark proof system to protect the molds and products.
C-frame or four-pillar presser, high strength, good rigidity.
High frequency welding press operated pneumatically or hydraulic.
The size of the working table and welding platen can be customized.
Adjustable parameters can be set in two working tables separately
Dual manual or automatic sliding working tables.
Heated Upper platen with thermostat for helping HF welding process.
European square and cylinder HF vibration box, more reliable and stable in output.
CE approved equipment.
Site installation, training, and maintenance for customers.
Online serviced by telephone, email, fax, video and so on. Provide the service of basic setup and repair through remote live online video.
STRONG POINTS of Industrial Belt radio frequency welding equipment
High sensitive spark protection function is our independent research and development, and one over one hundred thousand of a second circuit after long-term use can really start protection, instantaneous cut-off electric tube action and achieve the most effectively protect the mold and material from damage. Calculate by artifact rejection rate within one percent, per one million output value will save 10000 cost of raw materials, save the same proportion of labor costs at the same time, mould service life is longer
equipment in maintenance, there will be automatic air lock locks in moving bed, automatic airlock to prevent moving bed down, reduce the maintenance personnel or equipment damage, has higher security.
The mould pneumatic automatic lifting, the upper mould lifts, the lower mould pneumatic lifts, the efficiency is high, the time saving, the production beat is accelerated.
Fast changing mould, upper and lower mould are precise, high speed, high efficiency, and high efficiency.
High frequency electric field shielding, rigorous protection improve our equipment circuit, stable work, radiation protection level due to the national standard (GB18555-2001), such as segregation resistance, the bypass capacitor, these details for shielding electromagnetic places to work in place, is better than the same industry equipment. Really do full line shield, not just the outside door.
Power automatic tracking: feedback circuit set points in automatic regulation (power), due to the workpiece material is uneven, the change of the workpiece will automatically feedback. regulating function will start automatically. adjust the output of electric tube, because the equipment can control parameters in different periods, so you can weld the workpiece well with suitable current and power, and realize intelligent control, fast response, ensure product once forming rate, saving production time, improve product percent of the pass.
PLC automatic control, digital setting parameters, preexisting process parameters, product consistency, reduce individual labor intensity.
One-piece press, which is made of a piece of steel, good strength, little rigidity, high quality of the product.
Technical Specification of Industrial Belt Welder
Model now |
YF- HFM-8A |
YF- HFM-15A |
YF- HFM-25A |
YF- HFM-35A |
Power |
8KW |
15W |
25W |
35W |
Power supply |
380V 50/60HZ |
|||
Frequency |
27.12MHZ |
|||
Electric power |
25KVA |
35KVA |
50KVA |
70KVA |
Prectifier |
SILICON DIODE |
|||
Electric tube |
7T69R |
8T85 |
8T25R |
8T87R |
Max pressure |
>1000Kg |
2000Kg |
2000Kg |
3000Kg |
Size of the working electrode |
450*850 |
450*1000 |
450*1500 |
450*1500 |
Buy rf welding supplies on hf-weld.com!
