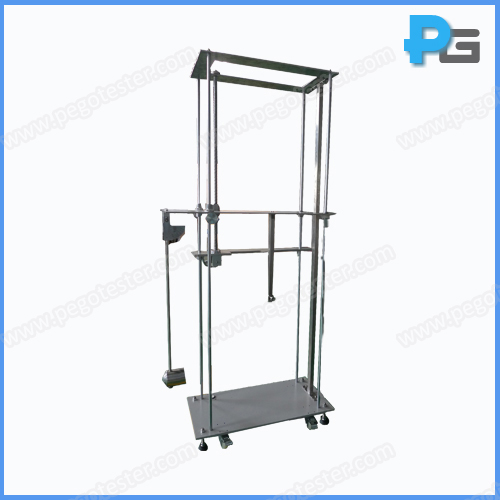

IEC60065-2-75 Pendulum Impact Hammer Testing Instrument
K07-IK10 Pendulum Impact Hammer
Introduction:
This device is designed according to IEC60068-2-75-1997 and IEC62262, and can meet the test requirements of IEC60598, EN50102, GB2423.55-2006, GB20138-2006 and etc. It is apply to sheet metal for mechanical impact testing. The device can be adjusted back and forward, left and right, and the angle also can be adjusted.
Specification
Angle: 0~900 adjustable
Length of swing rod: 1000mm
Impact hammers: 1.7kg, 5kg, 5kg, 10kg steel hammers with swing rods
Impact height: 200~1200mm adjustable
Impact energy: 2J, 5J, 10J, 20J, 50J
Note:
The standard configuration includes 0.5kg, 1.7kg and 5kg hammers for IK 07 to IK10 testing, 10KG hammer for 50J test is a optional device.
