Hydraulic Road Blocker Model No. ZOJE-RD3000
Quantité : 800 set/mo Prix : 200USD
Features of Hydraulic Road Blocker Model No. ZOJE-RD3000
Embedded road blocker equipment is mainly composed of the roadblock machines, hydraulic transmission stations, electric control parts, totally three parts.

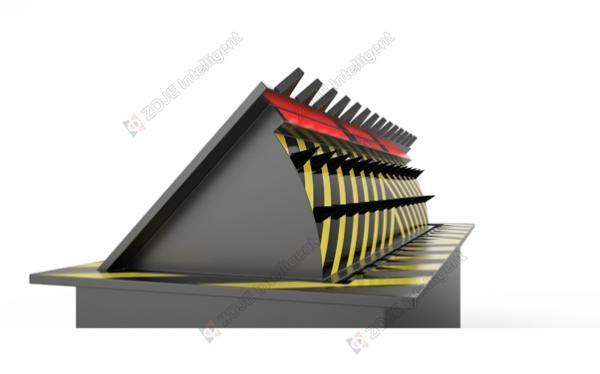

1. Road blocker machine
The road blocker machine is mainly composed of turn swivel or lifting body, the housing base(anti-collision spike can be added according to the client's requirement). The machine is made of steel, 16mm international standard A3 carbon steel and the channel steel welded together, which has a high strength of bearing load and anti-collision. There is no electrical appliances and line setup inside the base housing. It is very safe. The device is embedded in the driveway or the specified location of the gate. The personnel on duty will control the road blocker to limit vehicle access.
2. Hydraulic transmission station
Hydraulic station composed of the oil tank, the manual oil pump, a full range of hydraulic solenoid valve group, the high power motor, oil pump, oil cylinder, oil gauge, high-pressure hydraulic oil pipe and so on. It is the power source of a full set of road blocker system. The station is installed at the side of the road blocker and works together with the road blocker( Can adjust the up and down speed through control valve). When power failure, you can manually drop the blocker down and rise the blocker up.
3. Electronic control system
Automatic electronic control system parts: PLC control board, leakage switch, no exposure to noise high life contactor and other precise time-starting devices ( prevent the impact of the oil cylinder in place after movement and increase the service life of it)
Automatic controller: control box, remote controller, manual button. Those are controlled by the personnel on duty.
ZOJE is one of the most professional turnstile gate manufacturers in China. Just contact us!
