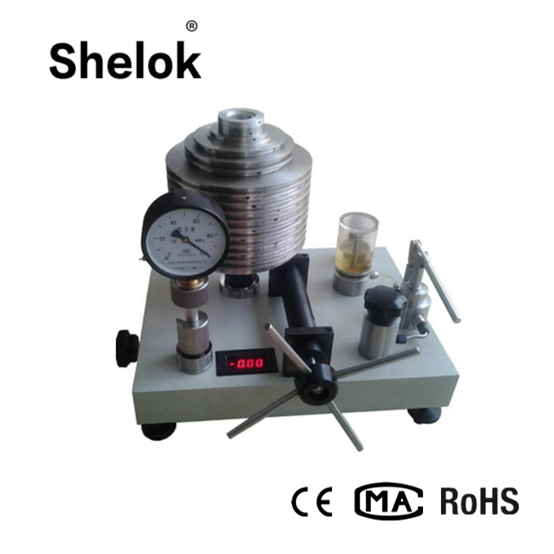

Hydraulic digital dead weight tester pressure gauge calibration machine

Quantité : 1piece   Prix : USD2500

1.Description of Hydraulic digital dead weight tester pressure gauge calibration machine:

KY series Dead weight piston gauge is a high precision and reliable standard pressure calibrator which is basic on Pascal law and a statics balance principle. ,we use it on some other gauges to calibrate the daseries DWT is a high precision and reliable standard pressure calibrator which is basic on Pascal law and a statics balance principle. It is usually called piston gauge or manometer, sometimes pressure balance instrument, major used in the lab and measure workshop, or as a pressure calibrator.

2.Feature of Hydraulic digital dead weight tester pressure gauge calibration machine:

1. Piston and piston cylinder are using high strength, high hardness, and low temperature expansion coefficient of tungsten carbide material after, the working environment temperature is wide, stable performance of 20±5℃.

2. The load center of gravity is low, the weight is directly added to the piston through the hanging basket, the piston runs smoothly, the pressure fluctuation is very small, and the value is accurate.
3. Above 25MPa, pressure transmitting medium use diisooctyl sebacate with small viscosity, to ensure a high sensitivity..
4. The weights of the tester is made of stainless steel.
5. Piston position with displacement sensor monitoring, the piston up and down stroke is ±1.5mm, the instrument display has the advantages of sensitive, eye-catching, accurate and so on.
6. Range wide, at the lower limit of 1MPa, the basic error is ±0.02% or ±0.05%, a KY100 type tester, can replace 3 testers of 6,60,100MPa.
7. It is labor saving, and can be easily to add pressure to be 100MPa.

3.Specification of Hydraulic digital dead weight tester pressure gauge calibration machine:

For further info: Serena.wang@shelok.com

http://www.digital-pressure-sensor.com

Localisation : 1203b room, inland mansion port, No.9 gangwu road, 710026 logistics park & xi'an international trade, 710026 inland mansion port,
Personne à contacter : Serena Wang, +86 17795766255
