HOUSEHOLD ENERGY STORAGE SYSTEM
Quantité : 10 million Prix : 1-100 yuan / piece

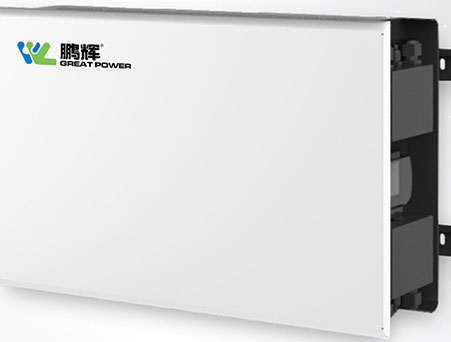

HOUSEHOLD ENERGY STORAGE SYSTEM
The maximum operating power is 3kw/5kw. These are several types of household energy storage systems with different rated energy, that is The 5.8WKh and 23 WKh. This battery-based energy storage system is mainly used with solar panels outside which is environmentally friendly. And its working temperature range is wide from -20 to 60 °C. The maximum continuous output power of the single machine is 5KW. The competitive edges of it are that quick storage retrofit on existing PV plant, compatible with all inverter brands, built-in 5.1kWh lithium battery (extendable), with UPS function, switch time≤10ms and easy setting of various working modes.
PARAMETERS OF HOUSEHOLD ENERGY STORAGE SYSTEM
|
No. |
Items |
SPEC. |
|
AS1-3KS-5.1 (Master Unit) |
||
|
1 |
Total Energy Capacity/Wh |
5120 |
|
2 |
Battery Capacity/Ah |
100 |
|
3 |
Rated Voltage/V |
51.2 |
|
4 |
Voltage Range/V |
42-58.5 |
|
5 |
DOD |
≤90％ |
|
4 |
Cycle Life |
≥6000 |
|
5 |
Max. Charge Current/A |
60 |
|
6 |
Max. Discharge Current/A |
60 |
|
7 |
Scalability |
Yes (up to 20.4kWh） |
|
8 |
Max. Continuable Output Power/VA |
3000 |
|
9 |
Communication Mode |
Wi-Fi/4G/Ethernet (Optional） |
|
10 |
Applicable Standard |
AS 4777.2 VDE 4105, G98, C10/C11, CEI0-21, IEC62619, IEC62040 |
|
No. |
Item |
SPEC. |
|
Parameters |
||
|
1 |
Total Energy Capacity/Wh |
5120 |
|
2 |
Available Capacity/Wh |
4600 |
|
3 |
Rated Voltage/V |
51.2 |
|
4 |
Voltage Range/V |
42-58.5 |
|
5 |
DOD |
≤90％ |
|
6 |
Cycle Life |
≥6000 |
|
7 |
Max. Charge Current/A |
60 |
|
8 |
Max. Discharge Current/A |
60 |
|
9 |
Operating Temperature Range |
-10°C-50°C |
|
10 |
Applicable Standard |
UN38.3 IEC 62619 |
|
No. |
Item |
SPEC. |
|
PH-GSP27135250-15S1P |
||
|
1 |
Total Energy Capacity/Wh |
5120 |
|
2 |
Single Battery Capacity/Ah |
100 |
|
3 |
Rated Voltage/V |
48 |
|
4 |
DOD |
≤90％ |
|
5 |
Cycle Life |
≥4000 |
|
6 |
Max. Charge Current |
1C |
|
7 |
Max. Discharge Current |
1C |
|
8 |
Scalability |
Yes (up to 48kWh） |
|
9 |
Size (H*W*D*, mm) |
628*198*528mm |
|
10 |
Weight |
45Kg |
HOUSEHOLD ENERGY STORAGE SYSTEM COMPETITIVE EDGES
A household energy storage system is currently divided into two kinds, grid-connected and off-grid. A grid-connected household energy storage system is mixed-powered by solar and the energy storage system, including five parts: solar array, grid-connected inverter, BMS (battery management system), battery pack and AC load.
Quick storage retrofit on existing PV plants.
Compatible with all inverter brands.
Built-in 5.1kWh lithium battery (extendable).
With UPS function, switch time≤10ms.
Easy setting of various working modes.
As a lithium battery exporter, we will do our best to meet all the needs of customers.
