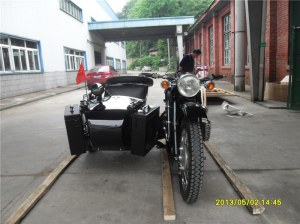

Hot Sale 750cc 24hp Military Shinny Black Motorcycle Sidecar Bike

ITEM DESCRIPTION

1. Model Number: CJ750B

2. Material: iron, painted

3. Style: Classic military theme

4. Color: matted black

5. Engine: 750cc

6. Customization: is welcomed, we can do patterns on car body

7. Available Colors: any color

8. MOQ: 1 piece

9. Optional capacity: we can change the engine with 250cc, 300cc, 350cc, 750cc

10. Optional Equipment: two ammo cans, blackout lamp, gun rack, disc brack, BWM-R71 fuel tank, spare fuel tank, small tool box

REMARK

1. Because of different monitors and brightness, there may exists tiny color difference.

2. Items will be insured from damage during transport from our factory to the destination port. If you want the items shipped to your house, please contact us.

3. We are not responsible for any duties, taxes, or additional charges that may be charged by Customs for any International deliveries.

4. There are two optional packing methods.

1) Wooden box packing

Cargo is Packed with un-fumigated wooden box.

SHIPMENT

We ship the item by sea generally, if you have other ideas please cantact us.Customized items will be shipped in 15 work days on payment received. Please make sure the shipping address is correct. We are not responsible for wrong address.

For detailed shipping costs, please contact us.

Price terms

This car can't send express, need normal customs clearance, The costs(6526US$) include: steel tower packing, into the storage fee, customs clearance fee, 17% of the value-added tax(1109).Sea freight are different from places , please contact us according to the country to modify the freight.

Packing Detail

Rolled with a plastic paper into a cube steel shelf, and then covered by steel net.

Weight after packing: 460kg/piece

Size after packing: 2200×1600 × 1270mm3

Optional Kits

Technical Data

Model category		Antique750B—A1	Antique 750B—A
1 performance criterion	Brake distance	≤8m
	Top speed	≥85KM/H
	MIN steady speed	≤25KM/H
	gradeability	≥15°
	Economic speed	50KmH
	Economic speed fuel consumption	≤4.6L/100Km
2 Vehicle size and quality parameters	Dimensions	2230 ×1590 ×1000mm
	fore-and-aft wheelbase	1492mm
	Fore-and-side wheelbase	1147mm
	tread	1175mm
	Ground clearance	140mm
	Turn round-diameter	6065mm,4380mm
	Dry weight	320kg
	Max payload	220kg
3 The engine and the ignition system	Type Model	series of F2P78FMF1	series of D2P78FM
	type	Four-stroke double-cylinder air-cooled and Horizontally-opposed
	Total displacement	746ml
	Cylinder diameter*stroke	78×78mm
	Compression ratio	7: 1	6: 1
	Min no-loading stabilized speed(idling)	750±75r/min
	Direction of power and appropriate speeds	17.7KW(24HP)/4000±300r/min	14KW(19HP)/3600±300r/min
	Max power and its corresponding speed	22KW(30HP)/5000±300r/min 17.7KW(24HP)/4000±300r/min
	Max torque and its corresponding rotary	49N(5kgf·m)/3800±300r/min 39.2N·M(4gf·m)/3000±300r/min
	Gear position No. 1 Gear position	16.63: 1
	No. 2 Gear position	10.55: 1
	No. 3 Gear position	7.85: 1
	No. 4 Gear position	6.01: 1
	Rear drive ratio	4.62: 1
	Starting mode	Kick & electric
	Way of ignition	battery ignition system with contact
	Spark plug type	T4135J or T4114J
	Spark plug clearence	0.6~0.7mm
	Valve clearence	Air intake,exhaust: 0.1mm
4 Fule and lubrication	Capacity of gasoline	26L
	Fuel trademark	70#or90#gasoline(SH0112—92)
	Oil capacity of crankcase	2L
	Transmission case engineoilcapacity	0.8L
	Oil capacity of rear drive	0.175L
	Lubricator oil
		>0°C,HQ1.0GB485: <0°C,HQ6GB485</p>
5 Drive system	Cluth	Mechanically controlled double-disc. Dry friction
	Tyre size (inch)	3.75—19
	Tyre pressure(kpa)	Front wheel 250±20kpa,rear wheel335±kpa,side wheel350±20kpa
	Brake pattern	The front brake: drum handbraking rear brake: drum footbraking
6 Electrical system	Rated voltage	12V
	Storage battery	6QA36
	Alternator	MJF—280B
	silicon rectifier	GZL—22
	regulator	JFT—149
	starting dynamo	MZQ—07A
	starting relay	JN3—12
	Headlamp	12V60/55W
	Cornering lamp	12V20W
	taillight	12V20/8W
	Electric hom	12V,≤3A

Product Catalogue

1)125CC, 200cc, 250cc,300cc, 350cc, 600cc, 750cc sidecars
2) electric sidecars/cars/KAINDUDU sidecars
3) 250cc engine, 650CC ,750cc engines.
4) sidecar/motorcycle accessories and parts.
