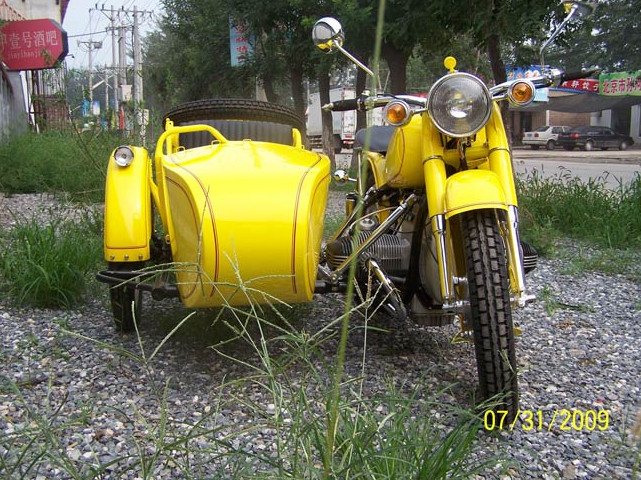

Hornet Motorcycle Sidecar 750CC 32HP
Quantité : 100 Prix : USD3550
750CC millitary sidecar
Model No.: CJ750Y
Engine: 750CC, 32 HP, 4-stroke
Color: Yelllow
MOQ: 1 PC
Lead time: 15 workdays
Brand new: Yes
Color: Yellow
Customization: Yes
Optional color: Can change into any color you like
Optional engine: Can change into 250CC, 300CC, 350CC, 650CC
Technical Data
Model Name: CJ750Y
Engine: 750CC, aircooled, 4-stroke
Brake Distance ≤ 8m
Top Speed ≥ 85KM/H
MIN Steady Speed ≤ 25KM/H
Gradeability ≥ 15°
Economic Speed: 50 km/h
Economic Speed Fuel Consumption ≤ 4.6L/100km
Item Length 2230 mm
Item Width 1590 mm
Item Height 1000 mm
Wheelbase: 1492mm
Fore-and-side wheelbase: 1147mm
Tread: 1175mm
Item Weight: 320 kg
Max Payload: 220kg
We are not responsible for import tax. If the duty in your country is very high, please inform us to declare a low value on invoice so that you may pay lower tax.
Items will be insured from damage during transport from our factory to the named port. If you want the items shipped to your house, please contact us.
We ship by Registered Airmail, DHL, UPS, FedEx or EMS. We will select the fast and reliable way for delivery. Items will be shipped within 7 business days on payment received. We are not responsible for wrong address.
Product Catalogue
1) 200CC, 250CC, 300CC, 350CC, 600CC, 750CC sidecars
2) electric sidecars/cars
3) 250CC engine, 750CC engines.
4) sidecar/motorcycle accessories and parts.
I'm Jenny, contact me, let's talk details.
|
Model category |
New style | |
|
1 performance criterion |
Brake distance | ≤8m |
| Top speed | ≥85KM/H | |
| MIN steady speed | ≤25KM/H | |
| gradeability; | ≥15° | |
| Economic speed | 50KmH | |
| Economic speed fuel consumption | ≤4.6L/100Km | |
|
2 Vehicle size and quality parameters |
Dimensions | 2230 ×1590 ×1000mm |
| fore-and-aft wheelbase | 1492mm | |
| Fore-and-side wheelbase | 1147mm | |
| tread | 1175mm | |
| Ground clearance | 140mm | |
| Turn round-diameter | 6065mm,4380mm | |
| Dry weight | 340kg | |
| Max payload | 220kg | |
|
3 The engine and the ignition system |
Type Model | Changjiang 750cc motorcycle engine |
| type | Four-stroke double-cylinder air-cooled and inline um | |
| Total displacement | 249ml | |
| Cylinder diameter*stroke | 68×68mm | |
| Compression ratio | 9: 1 | |
| Min no-loading stabilized speed(idling) | 1500rpm | |
| Direction of power and appropriate speeds | 17.7KW/6500 rpm | |
| Max power and its corresponding speed | 22KW7500rpm | |
| Max torque and its corresponding rotary | 49N(5kgf@m)/5500rpm | |
| Gear position primary | 3.632 | |
| No1 Gear position | 2.846: 1 | |
| No. 2 Gear position | 1.778: 1 | |
| No. 3 Gear position | 1.333: 1 | |
| No. 4 Gear position | 1.083: 1 | |
| No. 5 Gear position | 0.913: 1 | |
| Rear drive ratio | 4.62: 1 | |
| Starting mode | electric | |
| Way of ignition | CDI electronic ignition system | |
| Spark plug type | A7RTC | |
| Spark plug clearence | 0.6~0.7mm | |
| Valve clearence | 0.05±0.02mm | |
|
4 Fule and lubrication |
Capacity of gasoline | 26L |
| Oil capacity of engine | 1.2L | |
|
5 Drive system |
Oil capacity of rear drive | 0.175 |
| Lubricator oil | 15W/40 | |
| Cluth | More pieces of oil bath type | |
| Tyre size (inch) | 3.75-19 | |
| Tyre pressure(kpa) | Front wheel 250±20kpa,rear wheel 335±20kpa,side wheel 350±20kpa | |
| Brake pattern | The front brake: drum handbraking rear brake: drum footbraking | |
|
6 Electrical system |
Rated voltage | 12V |
| Storage battery | 6QA36 | |
| Generator type | Flywheel rotor | |
| silicon rectifier | GZL-22 | |
| regulator | JFT-149 | |
| starting dynamo | MZQ-07A | |
| starting relay | JN3-12 | |
| Headlamp | 12V60/55W | |
| Cornering lamp | 12V20W | |
| taillight | 12V20/8W | |
| Electric hom | 12V,≤3A | |
|
7 others |
Engine shape dimension | 412×362×442 |
| Engine weight | 42Kg | |
| Oil pump type | Internal meshing rotor | |
| lubrication type | combined force-feed and splash lubrication | |
| exhaust contaminant | CO<3.8%,HC<800ppm</td> | |
| ignition advance angle | Before BDC 35°±2° | |
