Hook Style Foundry Parts Deflashing Shot Blaster
Quantité : 100 Prix : 8 000,00 €

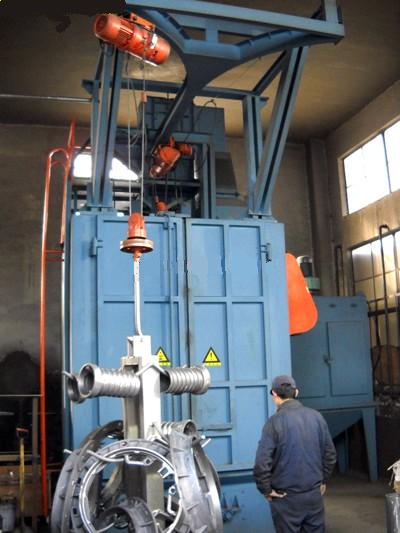

Q37 QT37 series Hook style foundry parts deflashing shot blaster Production
It is mainly used for surface cleaning and strengthening of steel structural parts,castings,aluminum alloy parts and other spare parts.It is widely used in foundry,mechanical and steel industry .
This series has following advantages: no pit,double hook without rail exchanging,compact structure,and high productivity.
Hook style foundry parts deflashing shot blaster Technical parameter
|
type |
Workpiece size(mm) |
single hook load(kg) |
capacity (kg/min) |
lifting capacity of hoist(t/h) |
separator capacity(t/h) |
ventilation capacity(m³/h) |
power(excluding dedusting)(kw) |
|
Q376 |
Φ600*1100 |
500 |
2*120 |
15 |
15 |
5000 |
19 |
|
Q378 |
Φ800*1500 |
1000 |
2*200 |
22 |
22 |
8000 |
32.5 |
|
Q3710 |
Φ900*1600 |
1000 |
2*250 |
30 |
30 |
9000 |
36.55 |
|
QD3710 |
Φ900*1600 |
1000 |
2*250 |
30 |
30 |
9000 |
39.65 |
|
Q3720 |
Φ1400*2300 |
2000 |
3*250 |
45 |
45 |
15000 |
61.27 |
|
Q3730 |
Φ1600*2300 |
3000 |
3*250 |
45 |
45 |
15000 |
64.4 |
|
Q3750 |
Φ1800*2500 |
5000 |
4*250 |
60 |
60 |
18000 |
78.4 |
|
Q3780 |
Φ2000*3000 |
8000 |
4*250 |
60 |
60 |
20000 |
81.5 |
Hook style foundry parts deflashing shot blaster service
1.Reply you in the 24h
2.Reply you in English
3.Hook Type Shot Blasting Machine Design according to technical requirement
4.Special discount and protection of sales are provided to distributor of Hook Type Shot Blasting Machine
5.We could do the field test to show the Hook Type Shot Blasting Machine operation and work effect
6.We are Hook Type Shot Blasting Machine manufacture, we could promise the quality and price
Qingdao Rovan Machinery Co., Ltd
1.Established in 2001the factory is located in Qingdao, China.
2.Mainly manufacture shot blasting machine, Hook Type Shot Blasting Machine, dust collector, microseism squeeze molding machine/sand molding machine, core shooter machine, resin sand production line, clay sand production line, etc.
3. Hook Type Shot Blasting Machine has ISO9001 and CE certification,
4. Hook Type Shot Blasting Machine OEM also could provide for you.
